UEV-470

NOW $59,990 | $237.6 ^P/W (7 year term) finance repayments

The UEV-470 is our newest compact hybrid caravan, designed for either a couple or a family of four – built tough for true off-road adventures, yet packed with comfort for the whole crew. Like the popular UEV-570, the UEV-470 delivers the same proven off-road engineering, build quality and comfort features, but in a more compact package. This smaller footprint makes it lighter, more nimble, and easier to tow, giving adventurers greater confidence on tight tracks, steep climbs and technical terrain while still enjoying the full UEV experience.

Premium features including a 5-layer aluminium composite construction with exoskeleton frame, independent airbag suspension with 140mm of adjustable travel, high-flow dust suppression system, lithium battery power with Redarc power management and Conqueror’s cleverly purpose-built storage – all standard. The UEV-470 is ready for anything. Best of all, it sets up in minutes, making it the perfect family escape machine for off-grid exploration and unforgettable adventures.

Download Brochure

SLEEPS

2-4

length

5050mm

tare

1850kg

ATM

2500kg

Water

240L

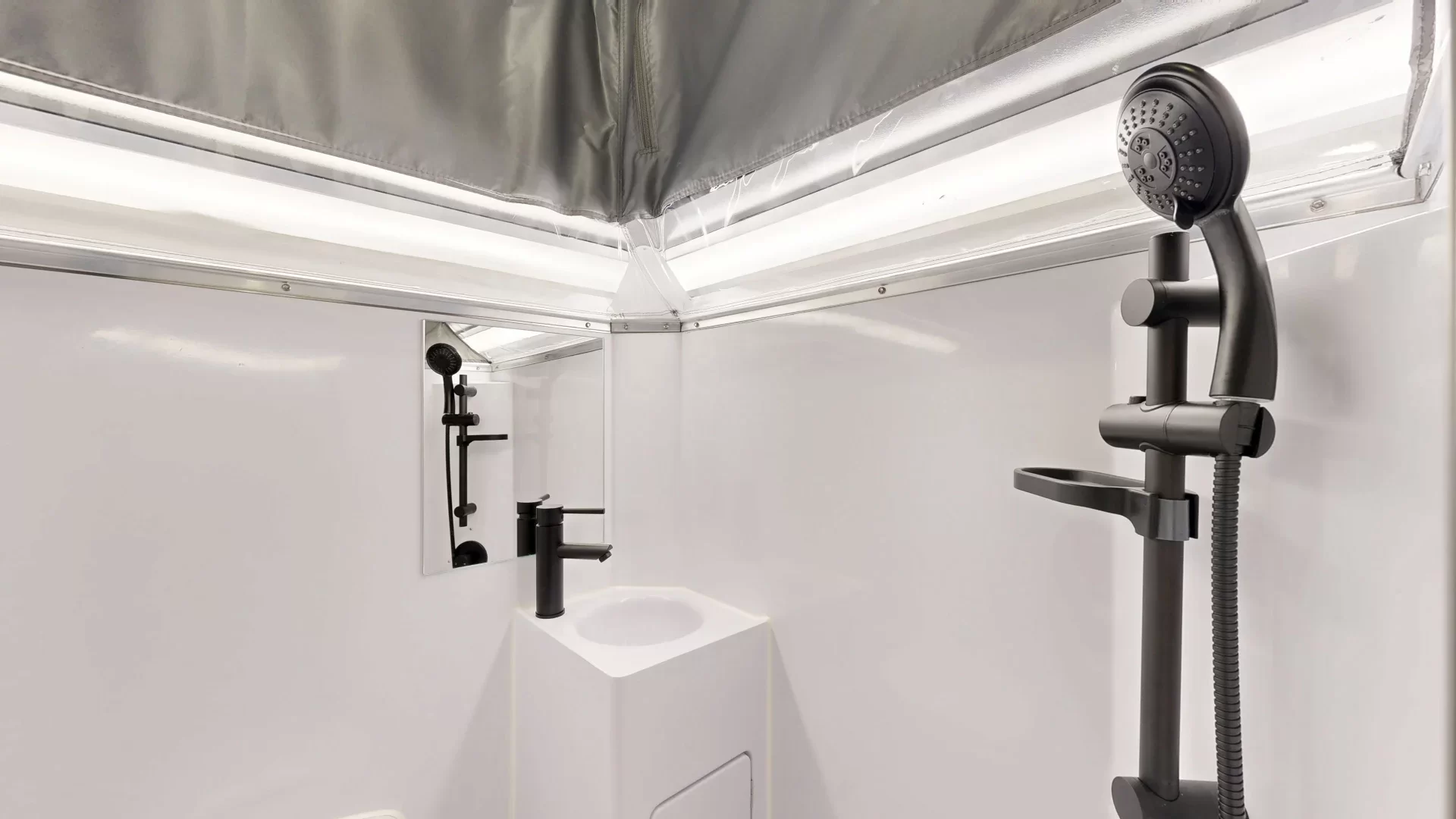

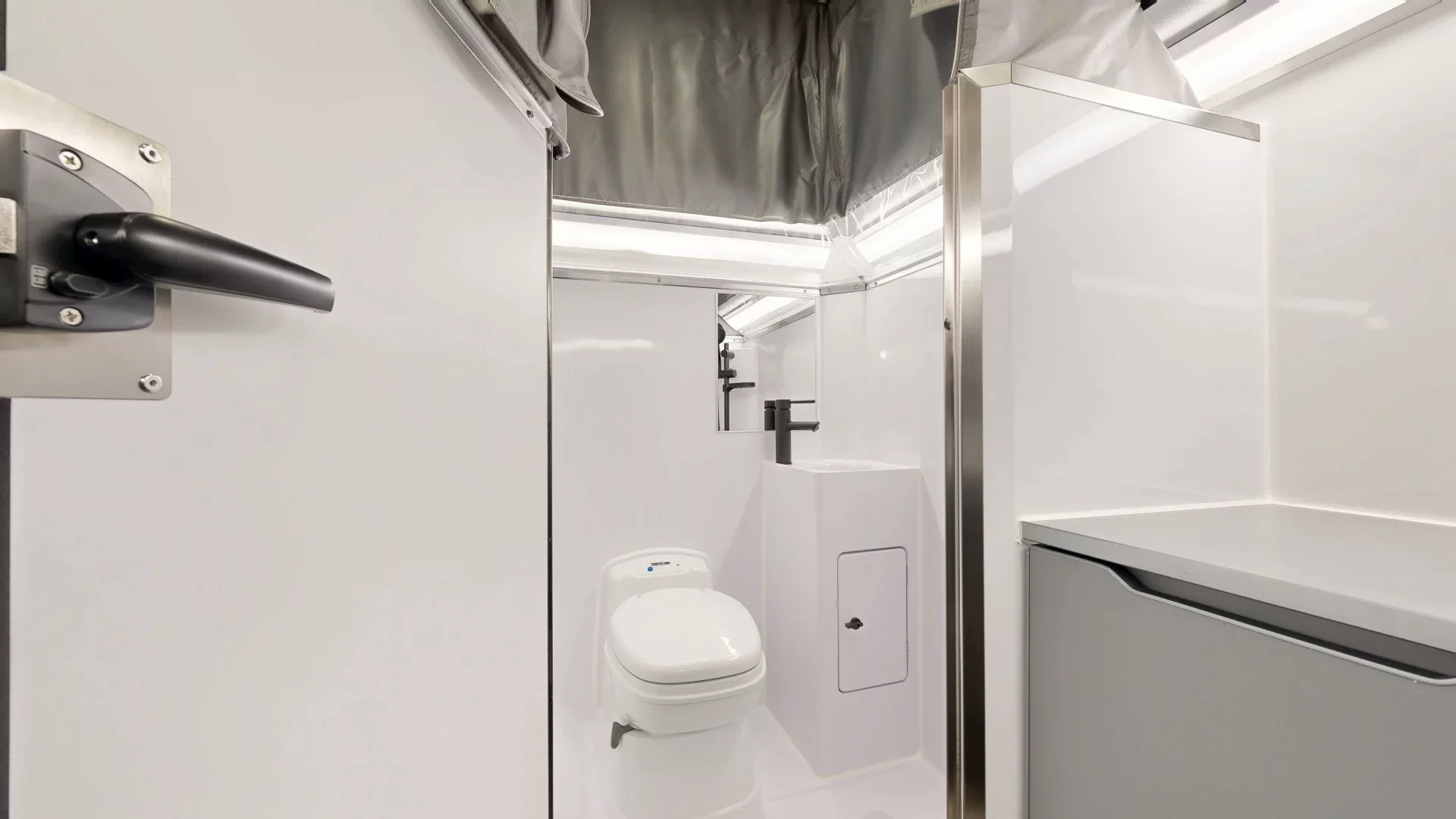

Ensuite

Internal

Air-Conditioning

Included

Inverter

Included

Exterior

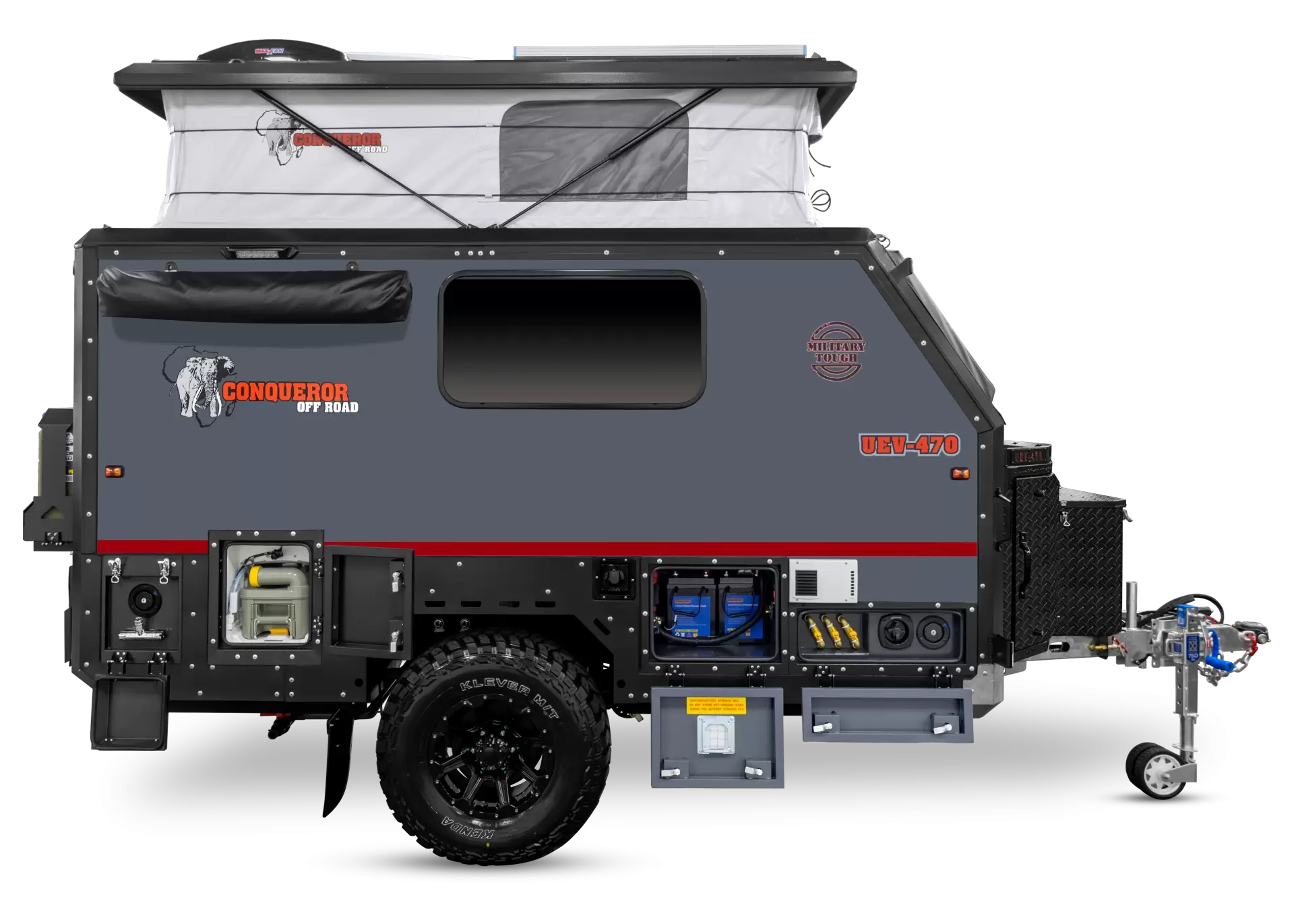

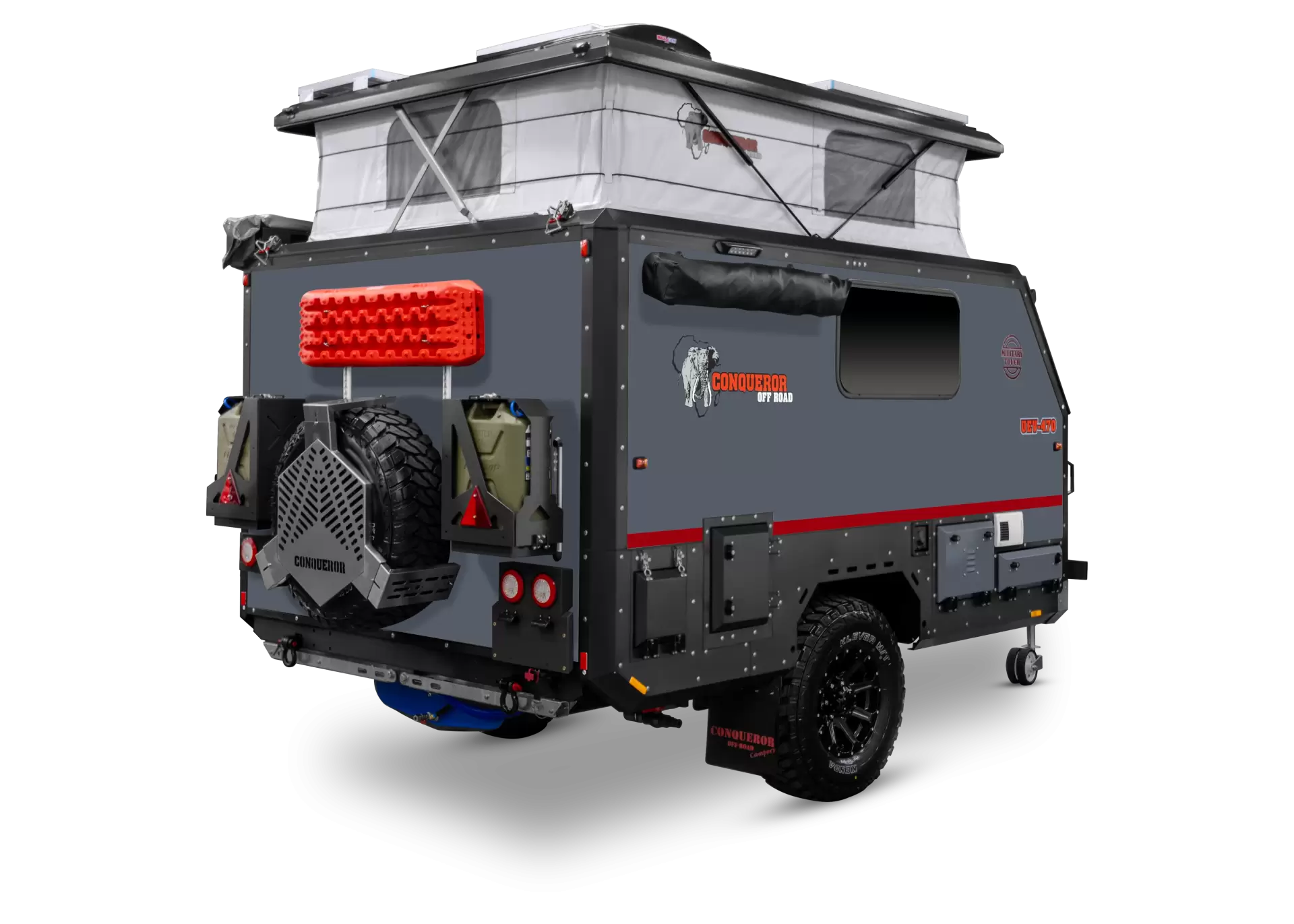

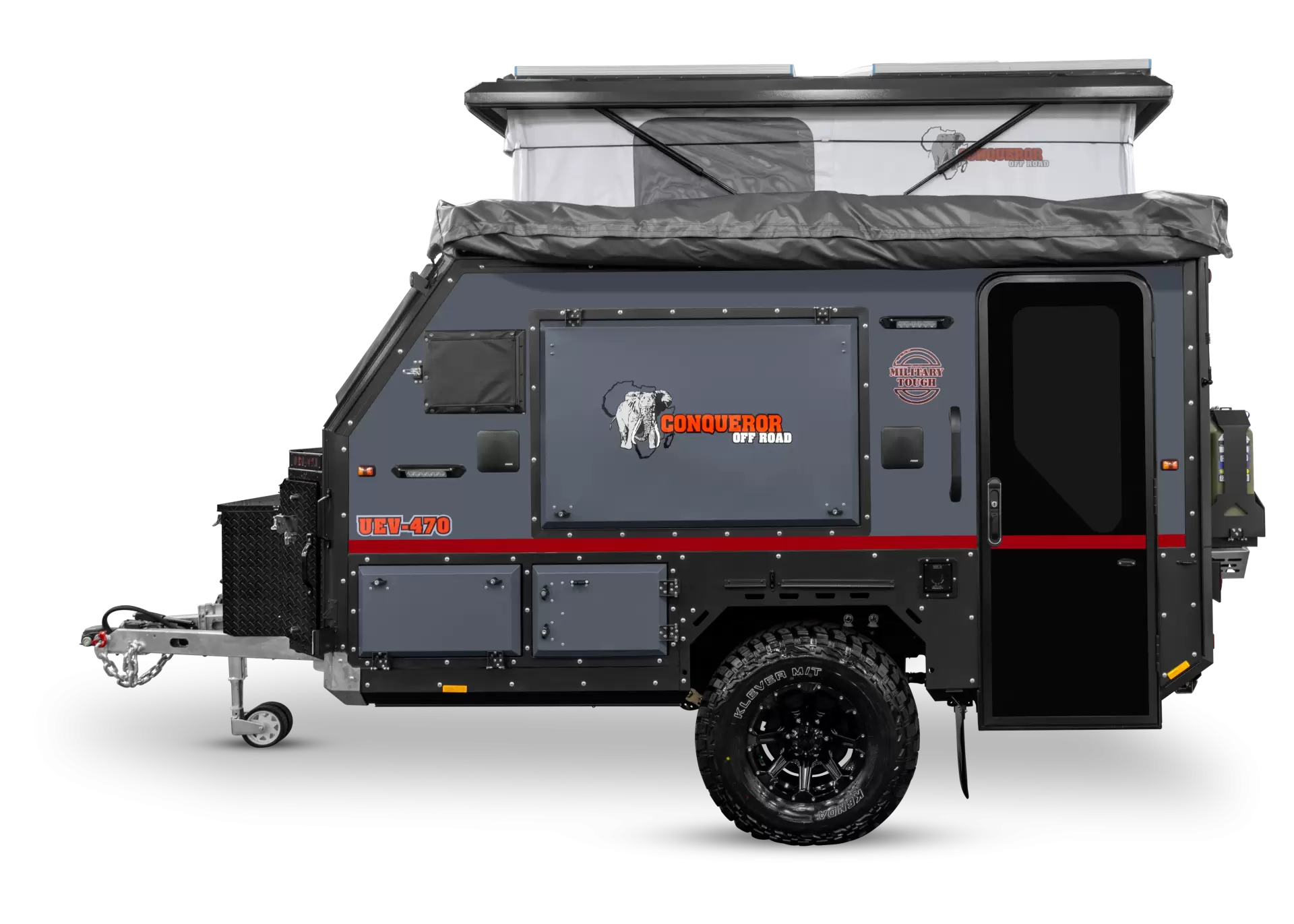

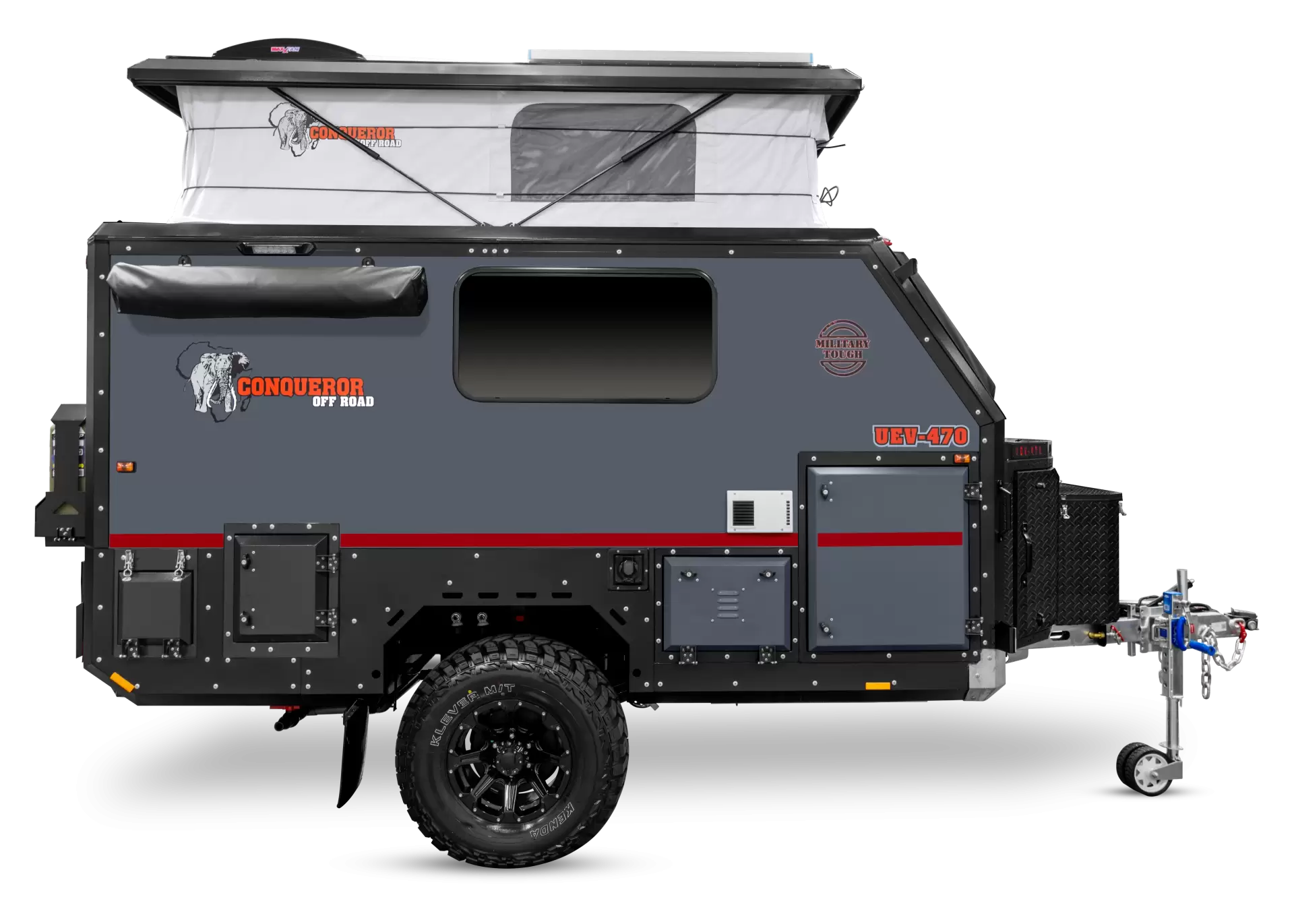

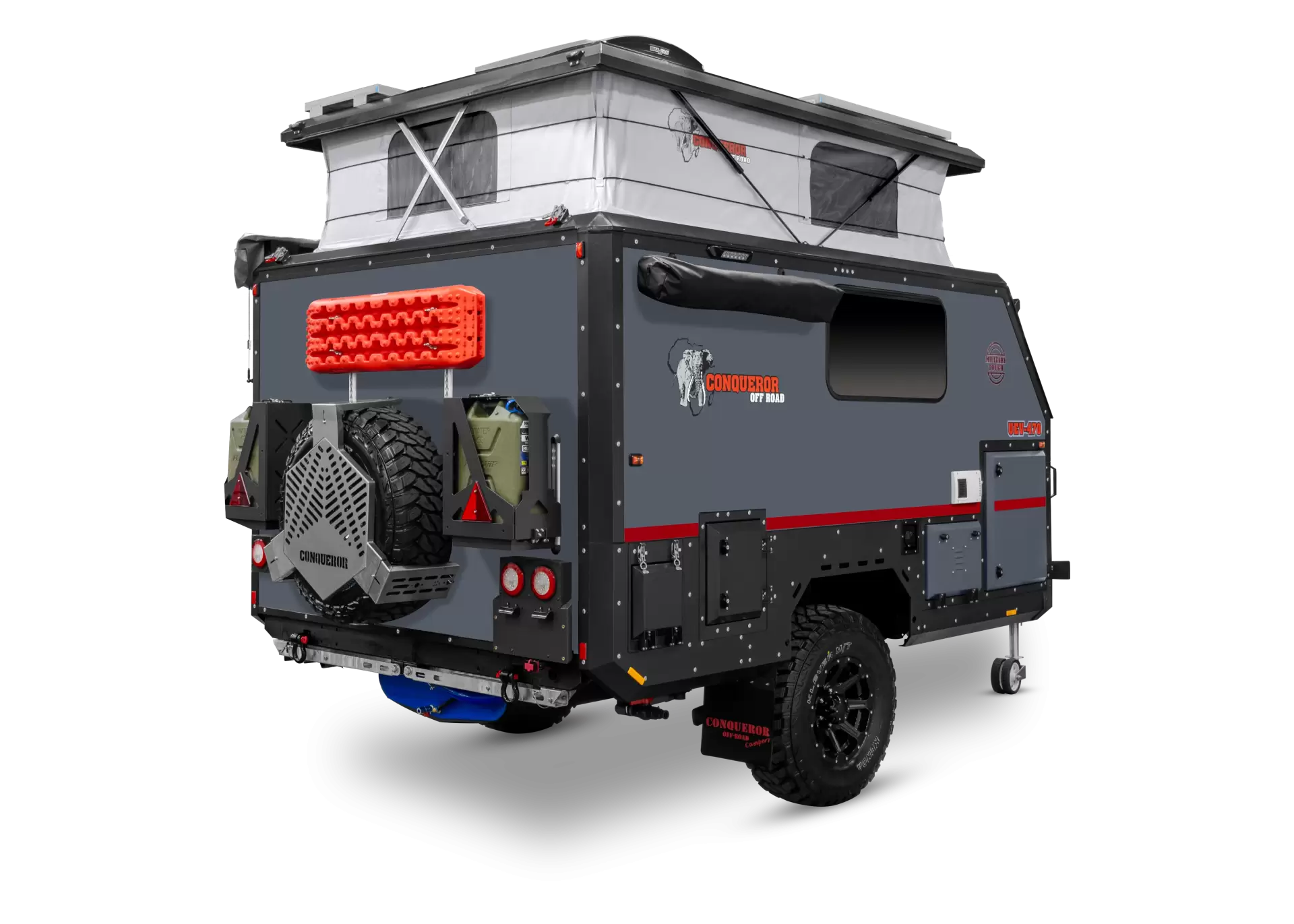

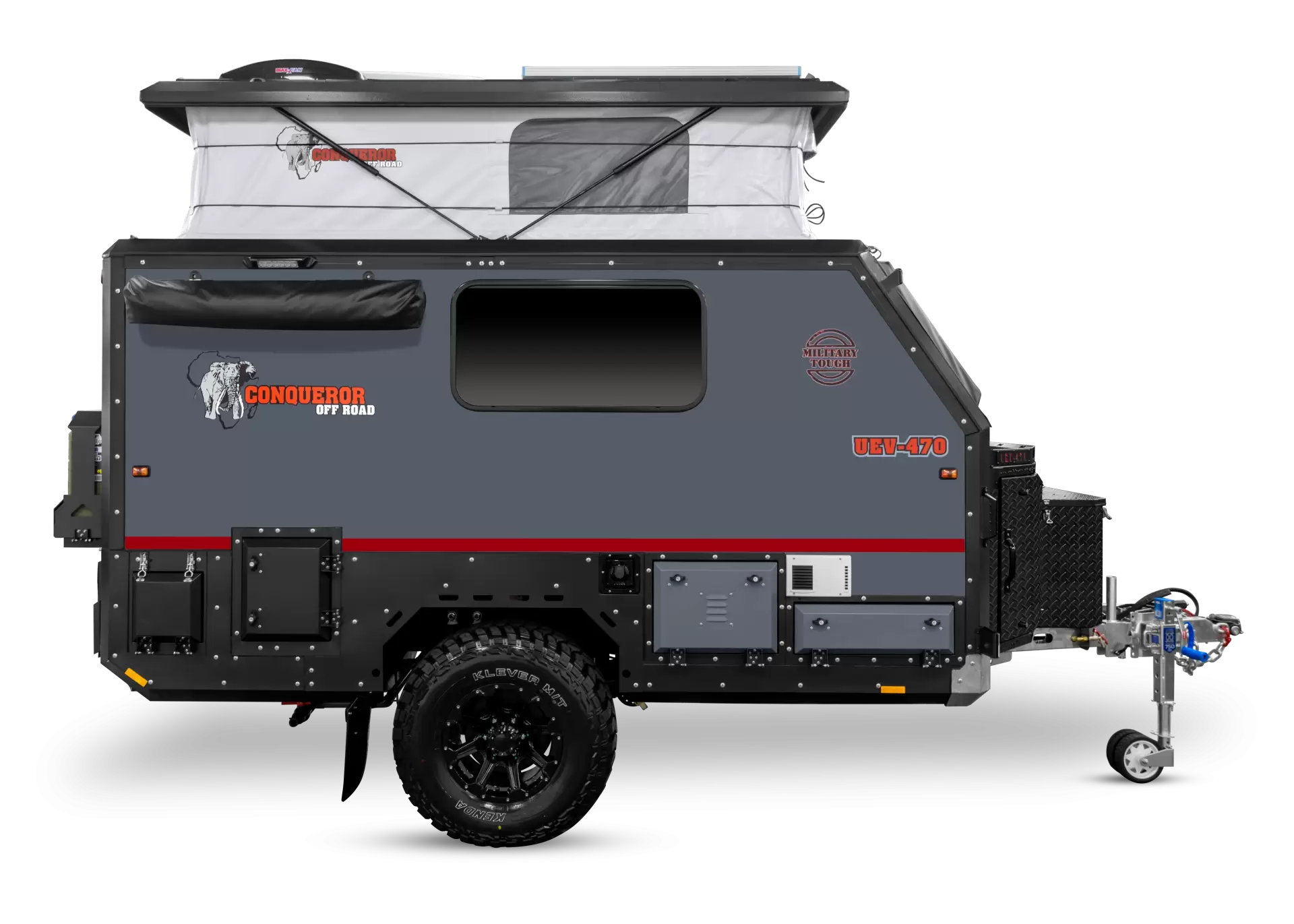

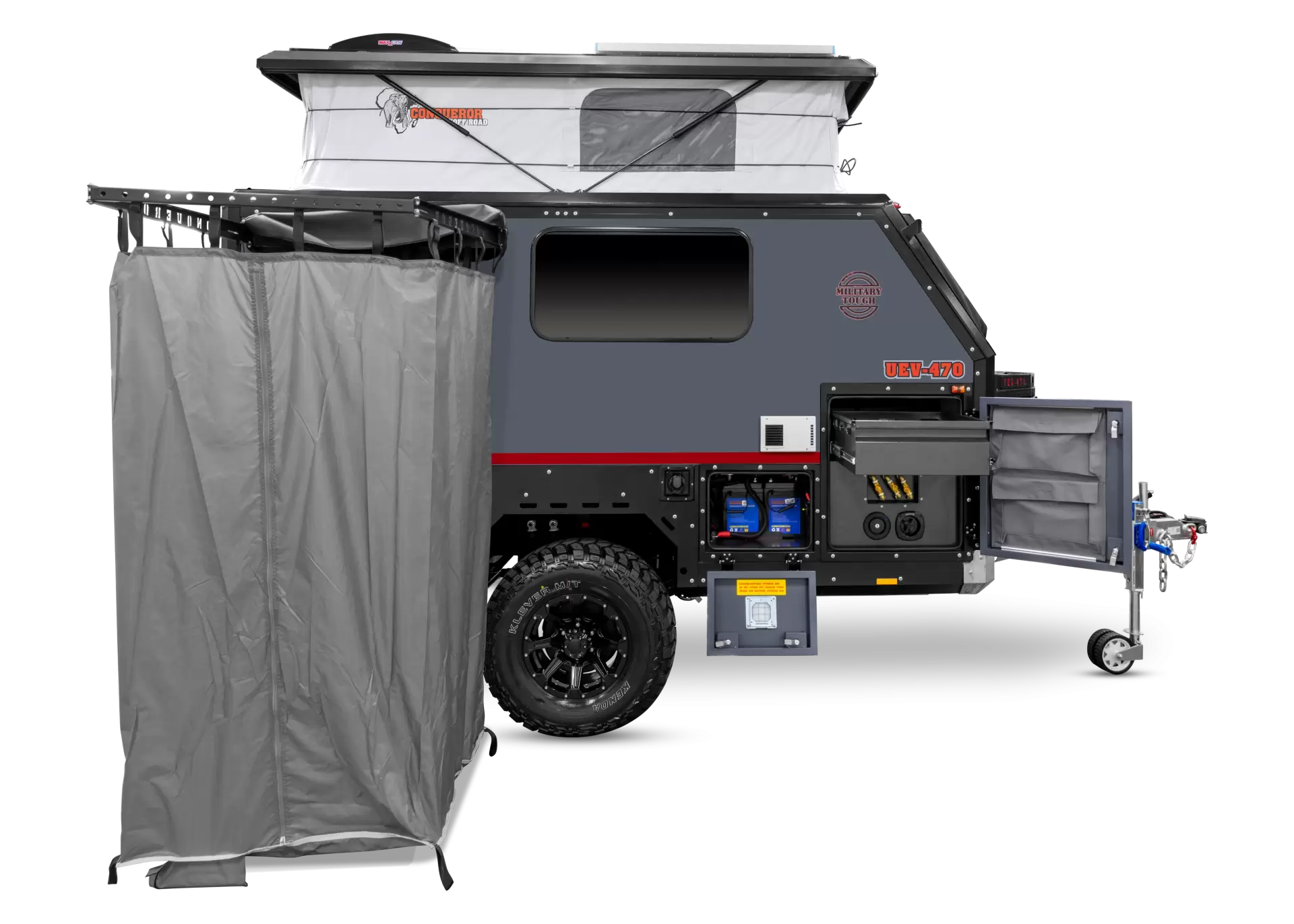

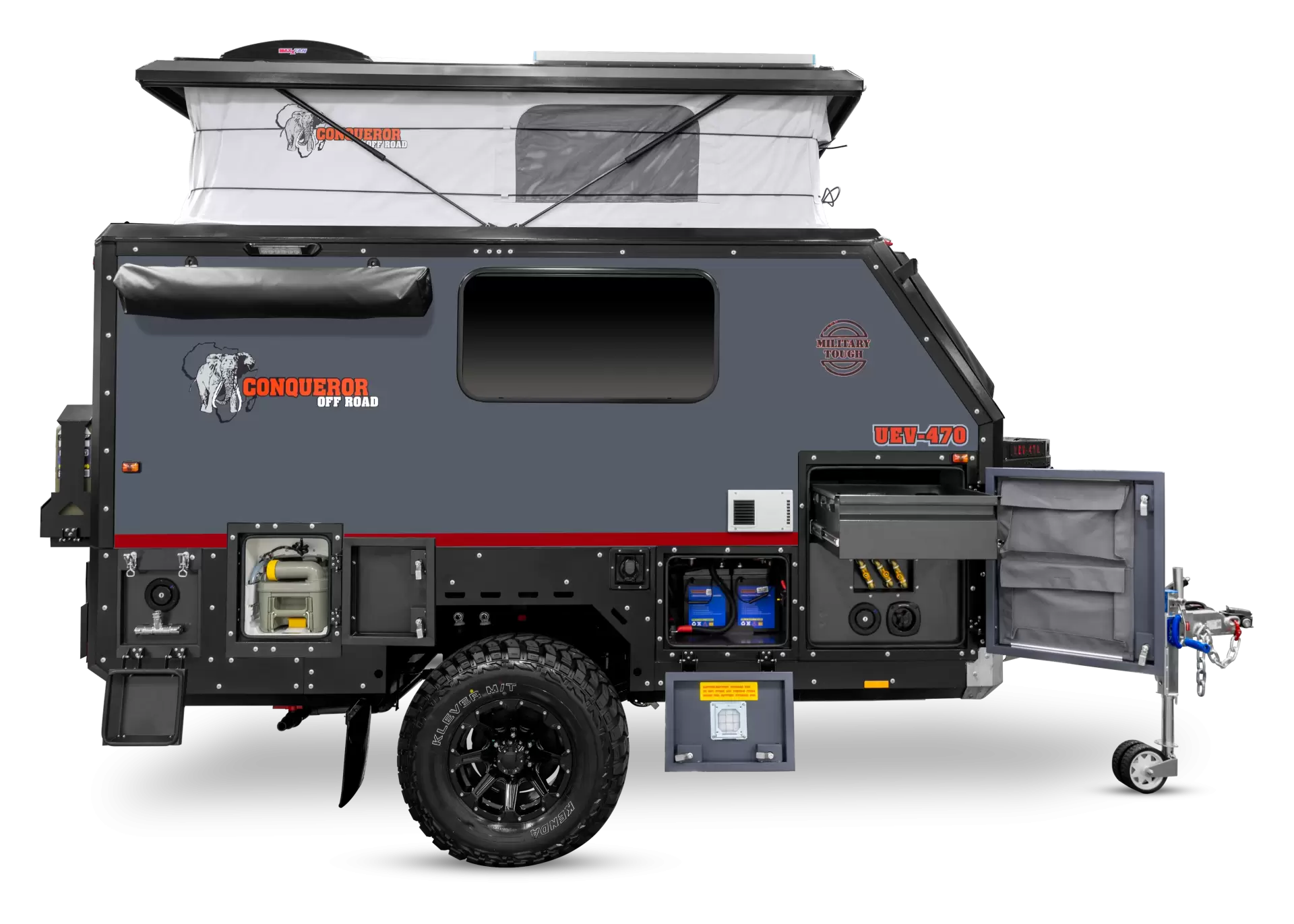

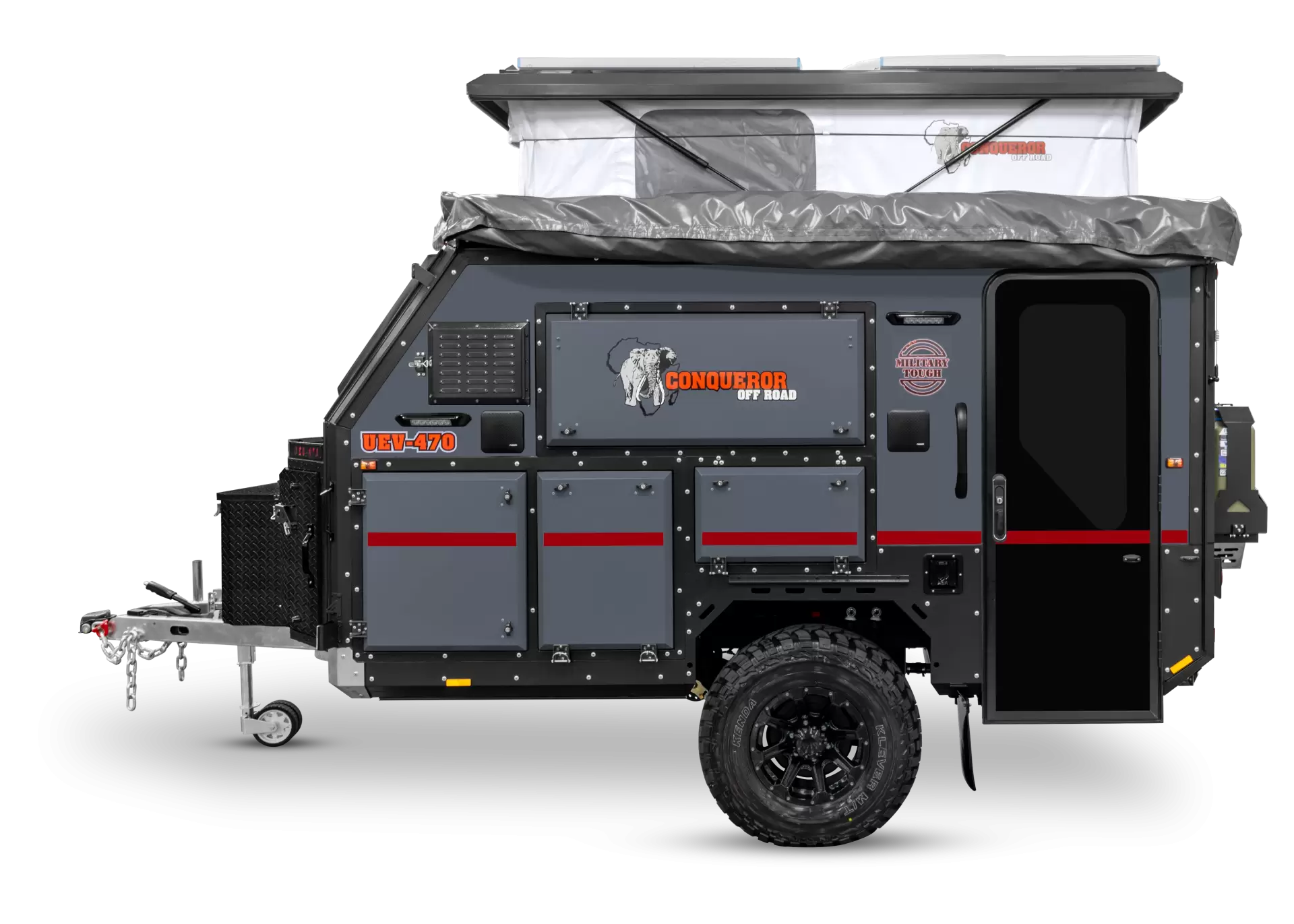

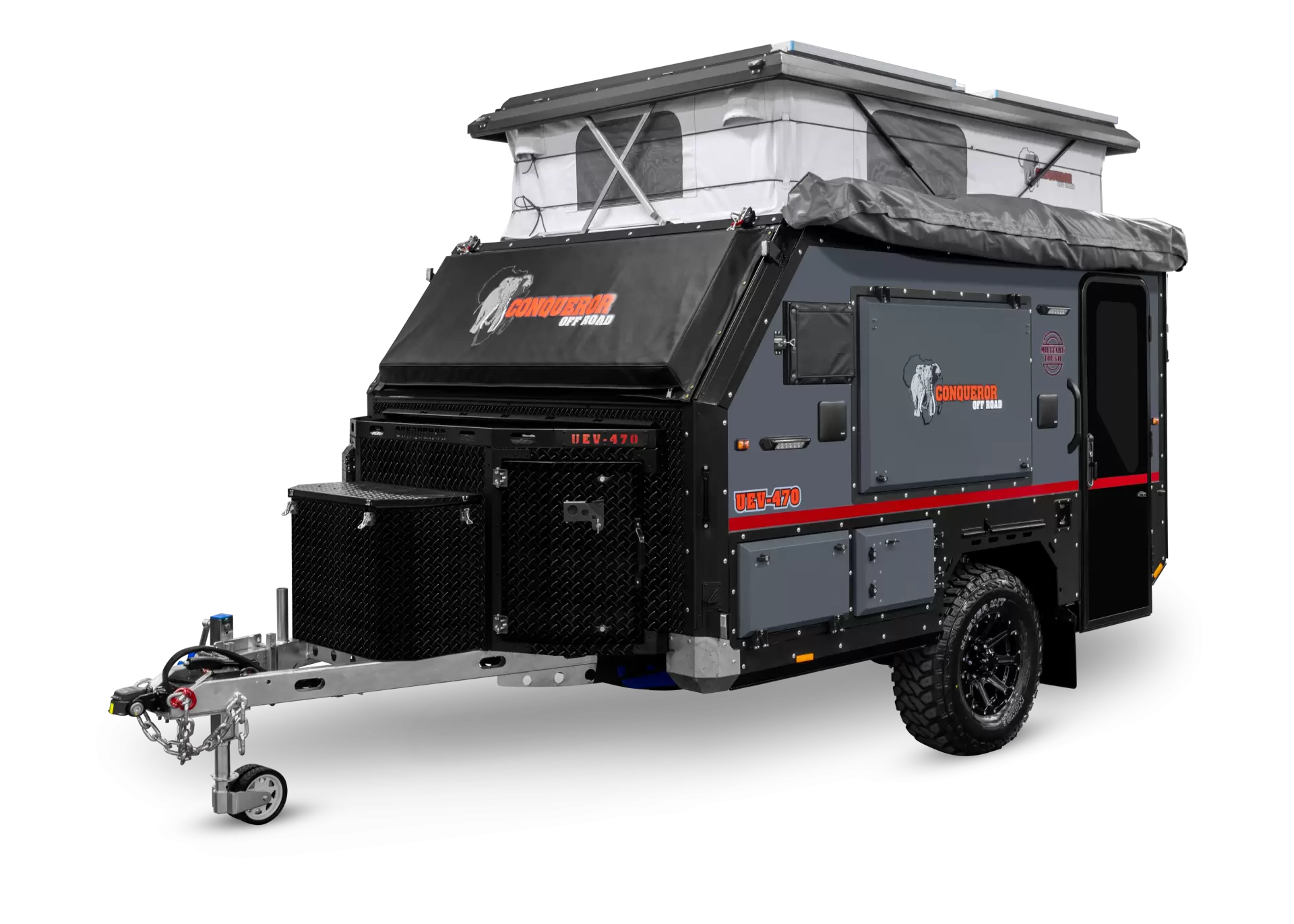

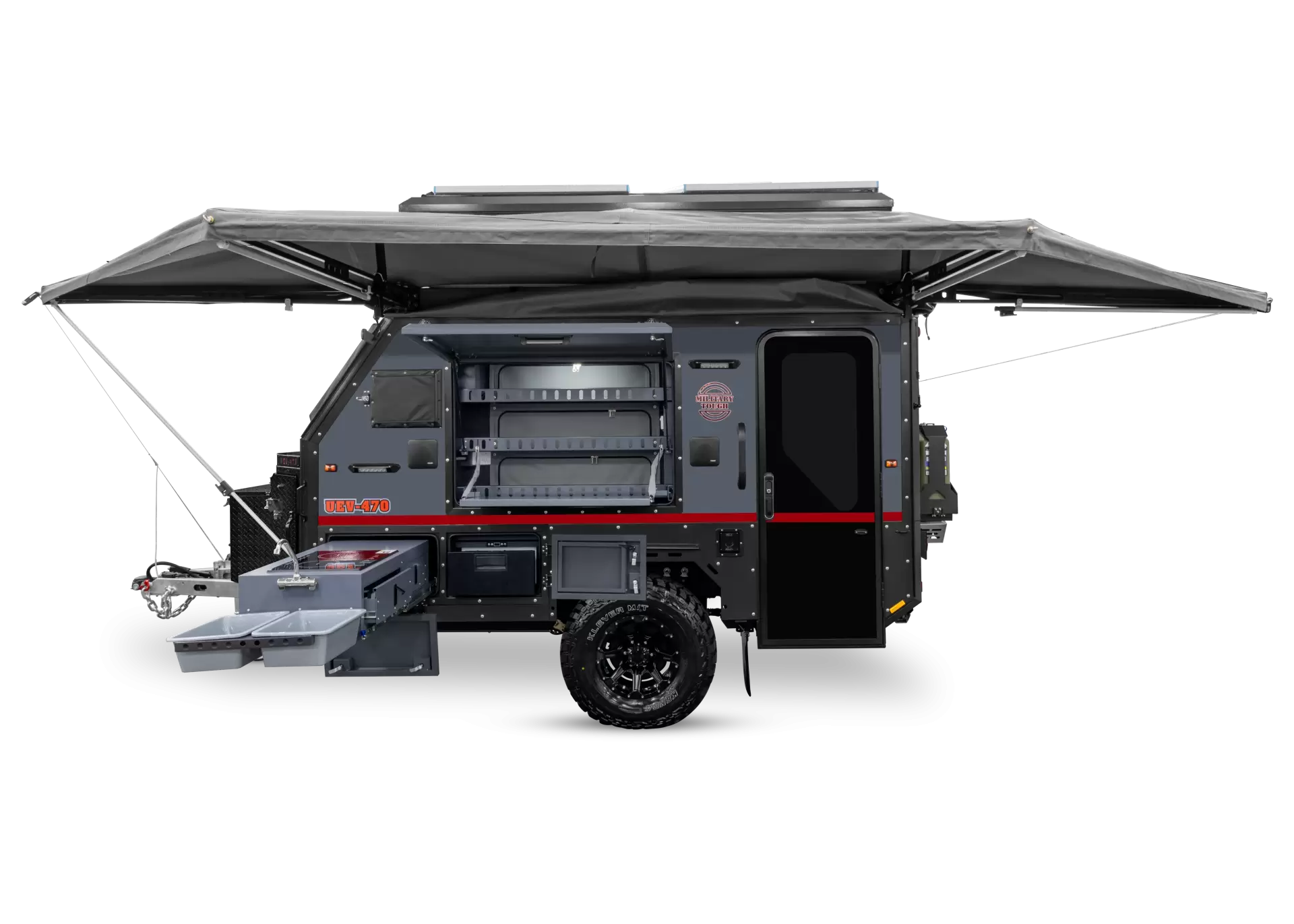

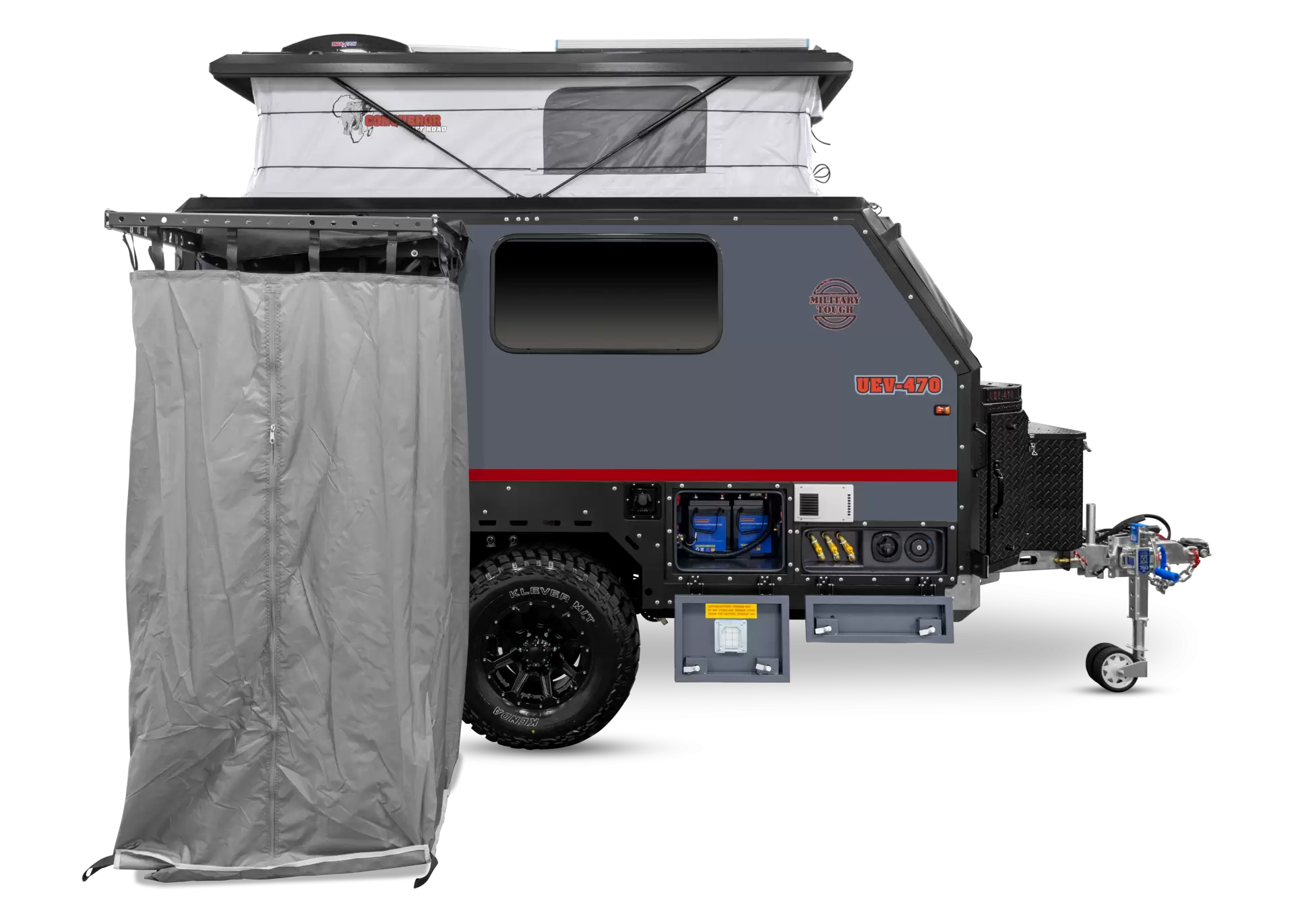

UEV-470 Exterior

Its rugged design combines an aluminium exo-skeleton frame, composite panel walls and roof for unbeatable insulation and strength, plus a hot-dipped galvanised stepped chassis riding on patented independent suspension.

View All (16)

Our Range

Specifications & Features

Disclaimer: Specifications and inclusions are based on the current model at time of publishing and are subject to change without notice.

Specifications

Exterior Length5050mm
Exterior Width Body2270mm
Exterior Width Body + Awning2400mm
Exterior Height2650mm
Tare1850KG
Ball180kg
ATM2500kg
SuspensionConqueror Independent Trailing Arm Airbag Suspension
Water Capacity240L Fresh Water + 80L Grey Water
Standard Solar400W Roof-Mounted (+ Portable Options)
Standard Battery300AH Baintech Lithium (up to 900AH available)
AC Charger Output24A/14.7V (max)
Occupant Capacity2 - 4
Master Bed SizeQueen - 1960mm (L) x 1760mm (W)
Bunk Bed SizeDouble
Inverter2000W Redarc Inverter (3000W available)
Air-ConditioningDometic

Construction/Chassis

Aluminium Exo-Skeleton Frame (Powdercoated)
Stepped Chassis - to increase Suspension Articulation
5-Layer Aluminium Composite Panel Walls & Roof
Cruisemaster DO35 All Terrain Pin Hitch
Hot-Dipped Galvanised Chassis
Conqueror Independent Trailing Arm Airbag Suspension
Airbag Man Compressor - includes external airline & gauge
Quad Ironman Heavy Duty Shock Absorbers
Ark 750 Dual Wheel Jockey Wheel
Kenda Mud Terrain Tyres 285/75/R16
16″ Black Alloy Wheels
1 x Spare Wheel
Electric Drum Brakes
High Flow Dust Suppression System
Option for Electric-Lift Roof
Adjustable Front & Rear Stabilizers
Trailer Breakaway System
LED Rear Tail Lights
Conqueror Stainless Steel BBQ Plate (Rear Wheel Cover)
Axe & Spade included, with secure mounting
Portable Adjustable Aluminium Entry Step

Water

240L Fresh Water: 120L Front Tank + 120L Rear Tank
80L Grey Water Tank
2 x 20L Water Jerry Cans - Rear Mounted
Truma Combi D6 Diesel Hot Water and Central Heating System
Creek-Draw System
Hot & Cold Mixer Taps Throughout

Storage

Powdercoated Front Storage Box
Powdercoated Gas Bottle Storage Box
Front Firewood Rack

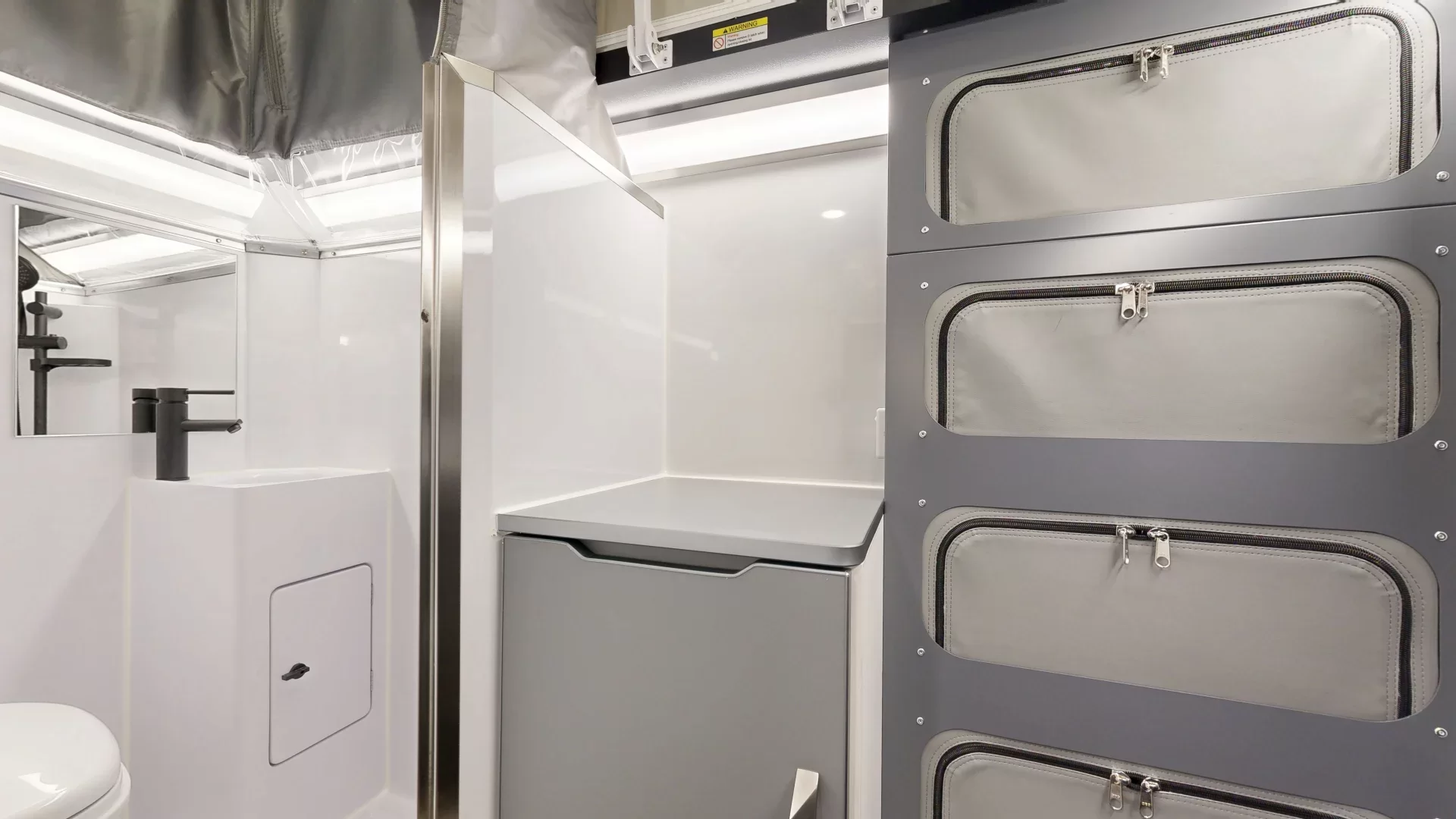

Internal Storage - Draws, Cupboards, Zippered
Compartments & Wall Pockets
Ability to access camper when roof is closed

Bedding

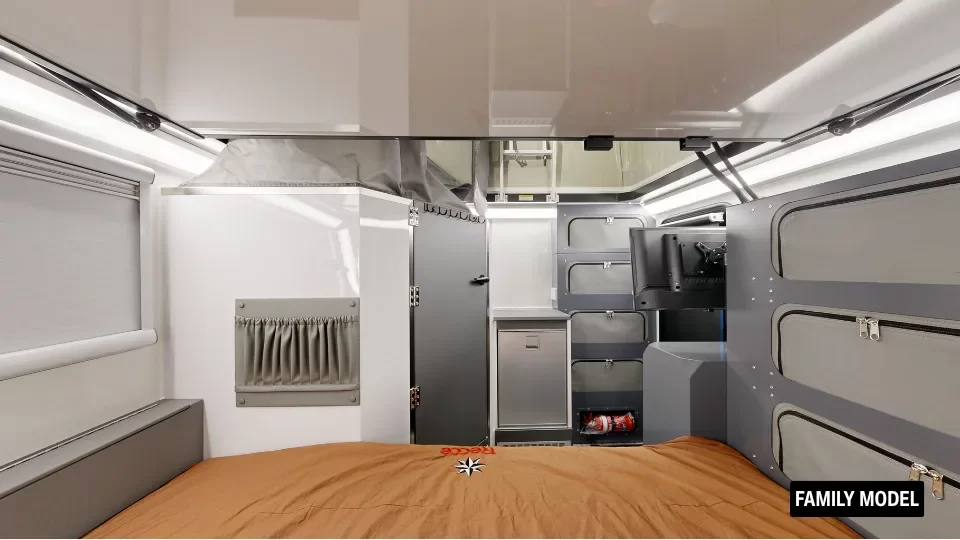

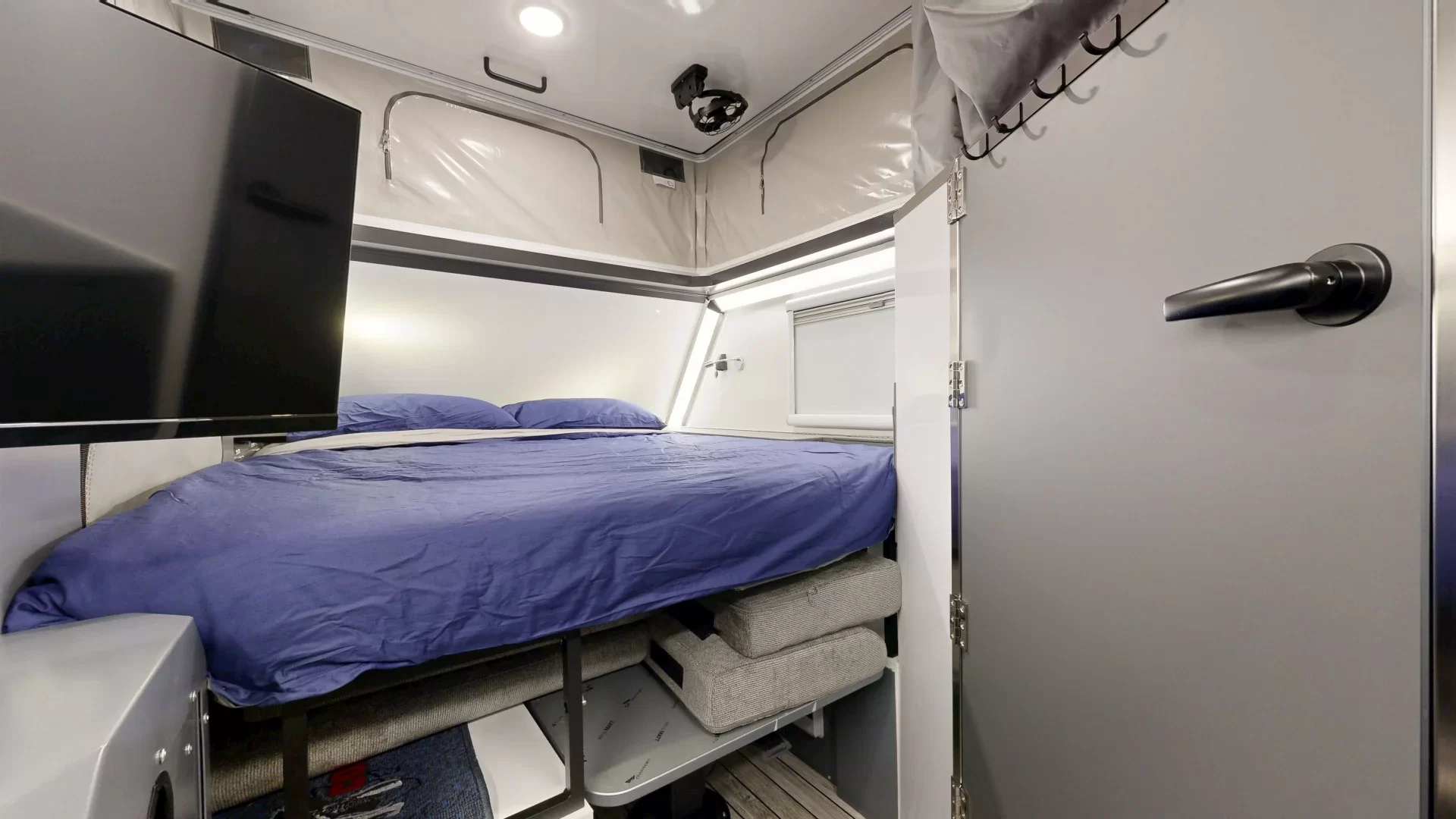

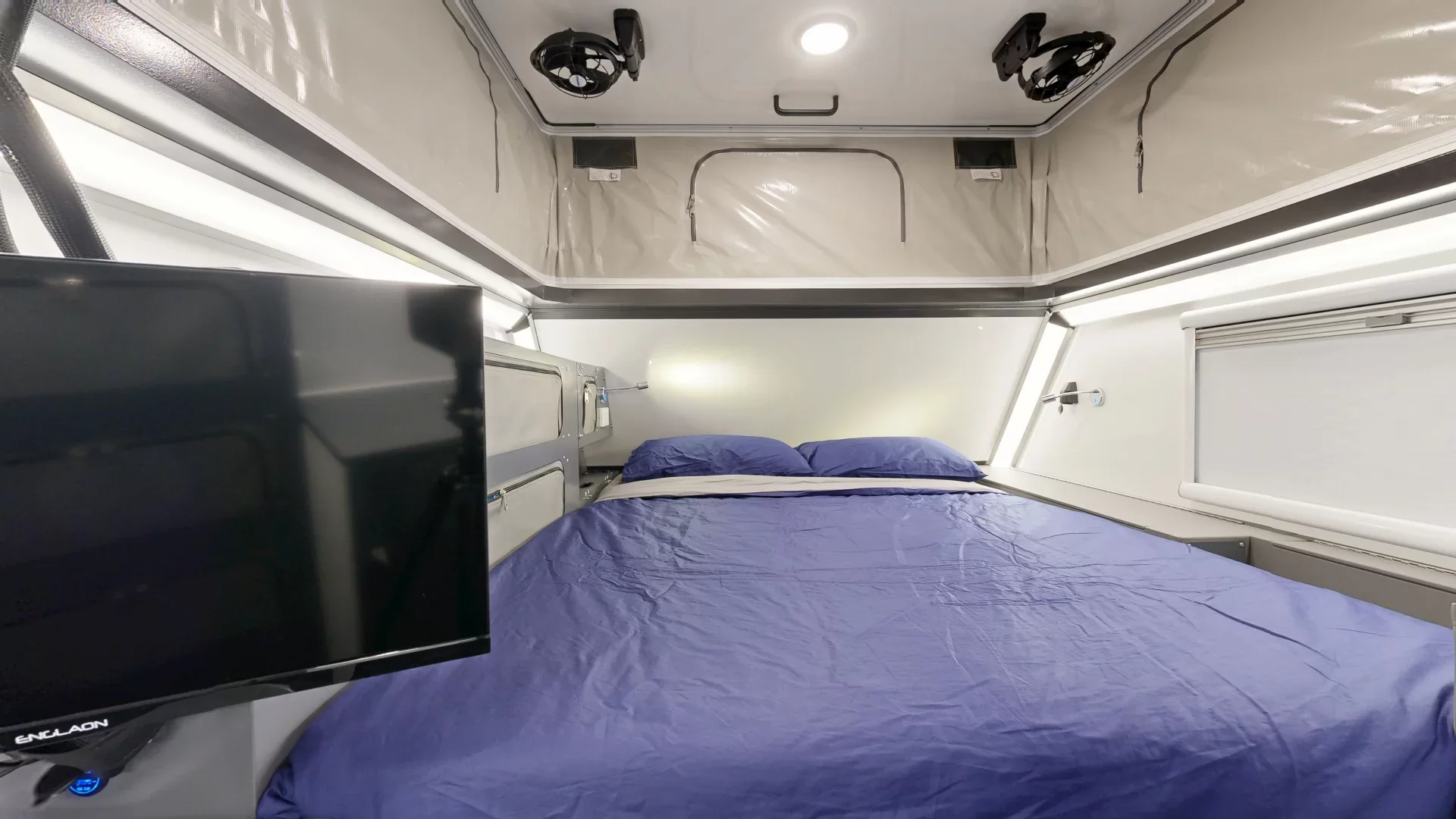

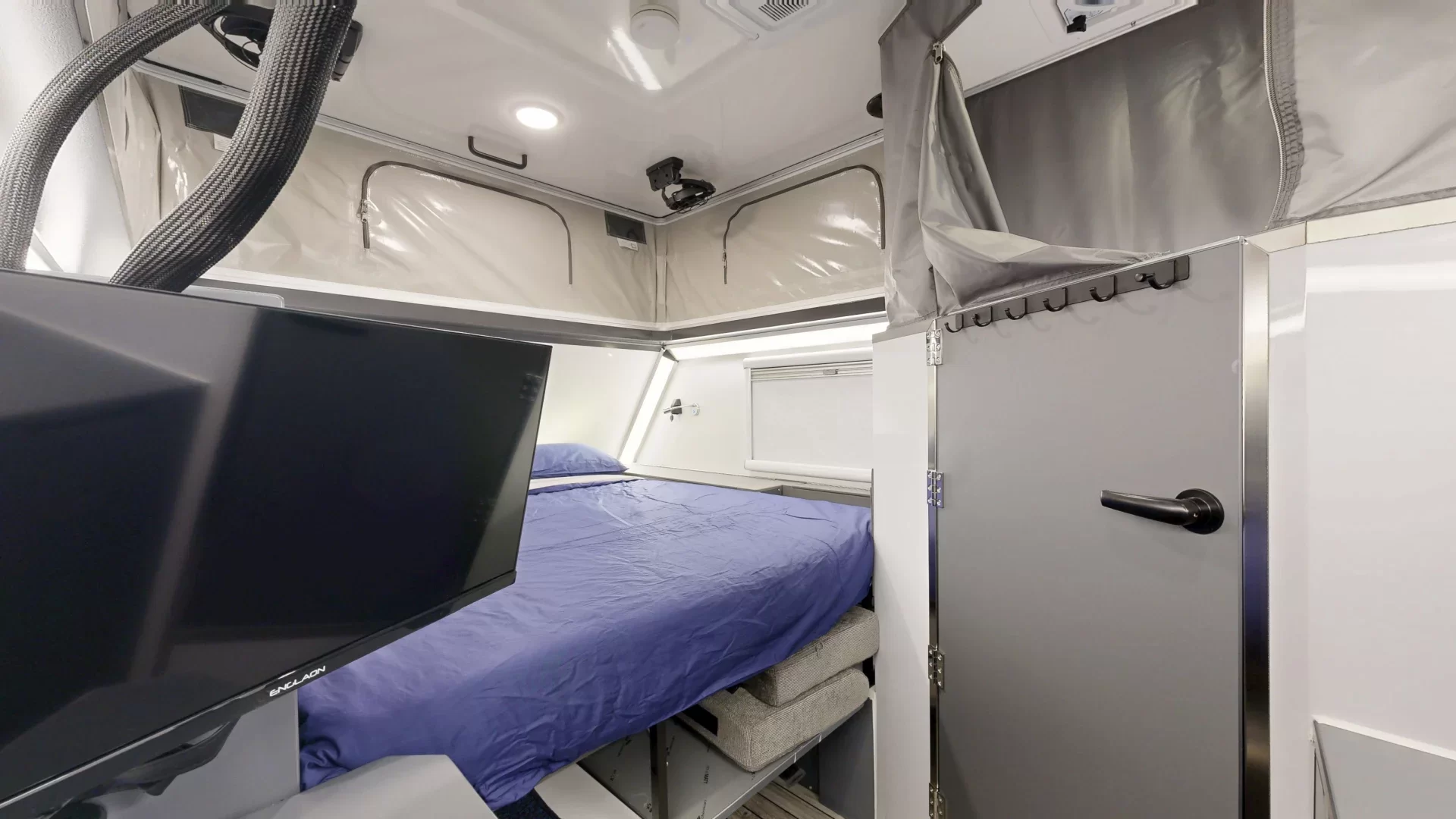

Queen Size Master Bed - 1960mm (L) x 1760mm (W)
Master Bed lifts up to access dining area (bedding remains in place)

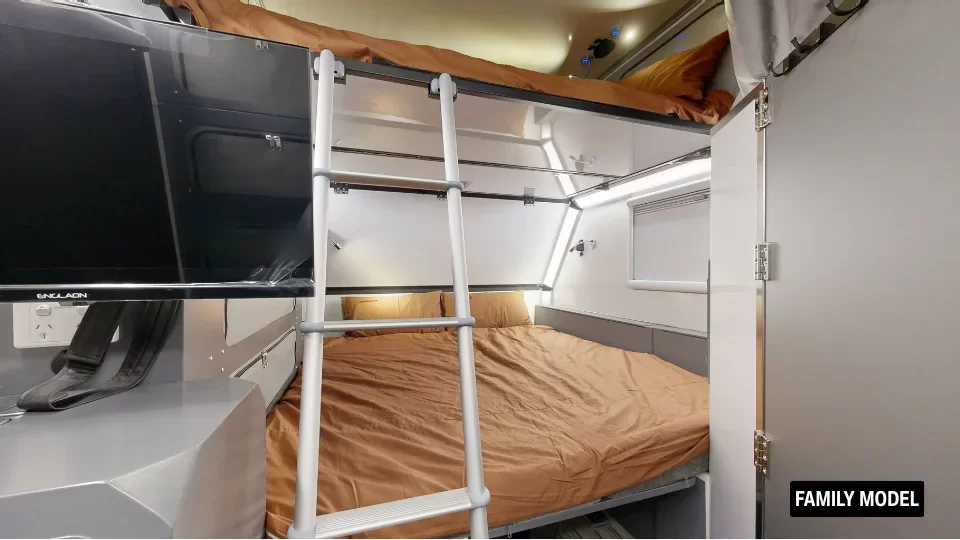

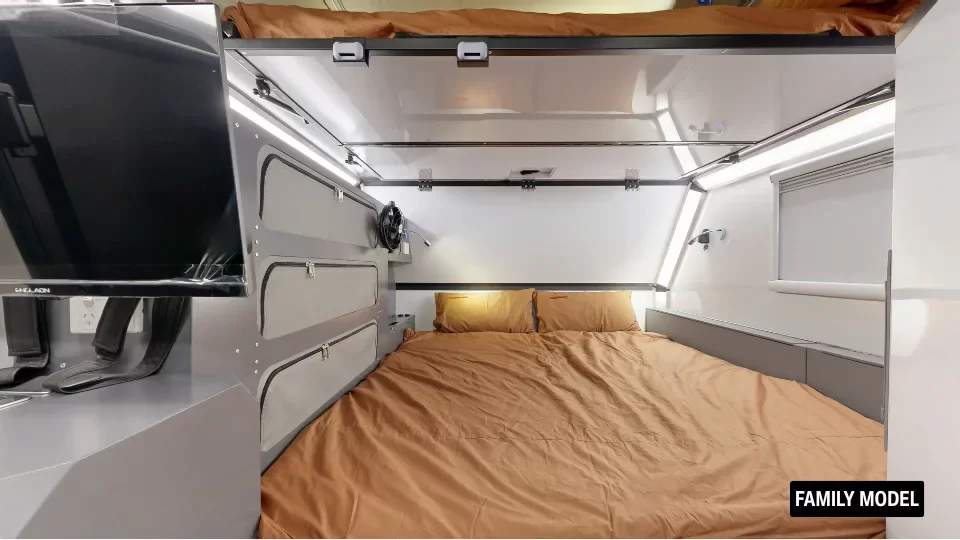

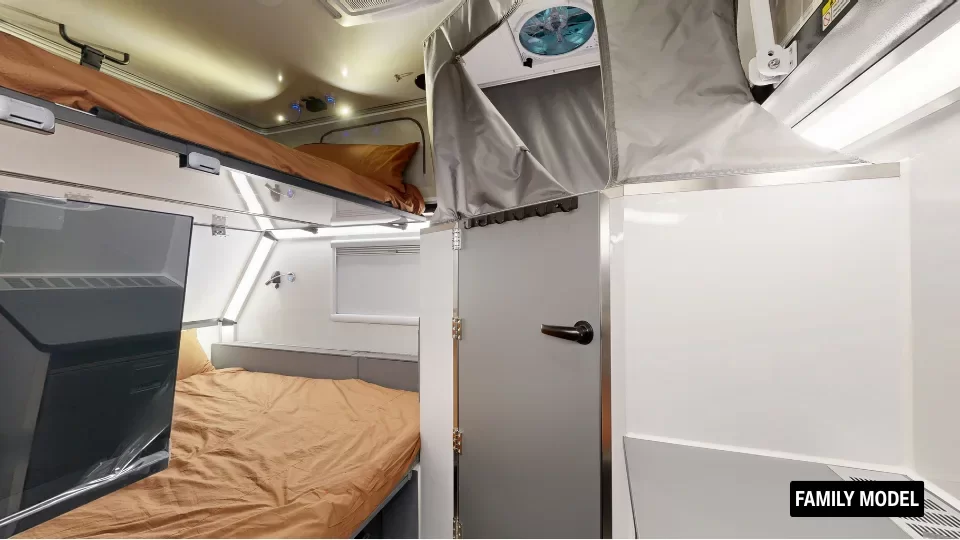

Double Size Upper Bunk (Family Model)
Eggshell Memory Foam Mattresses
2 x Fans
Couples Model Bedding Package - 1 x Doona + 2 x Pillows
Family Model Bedding Package - 2 x Doonas + 4 x Pillows

Protection

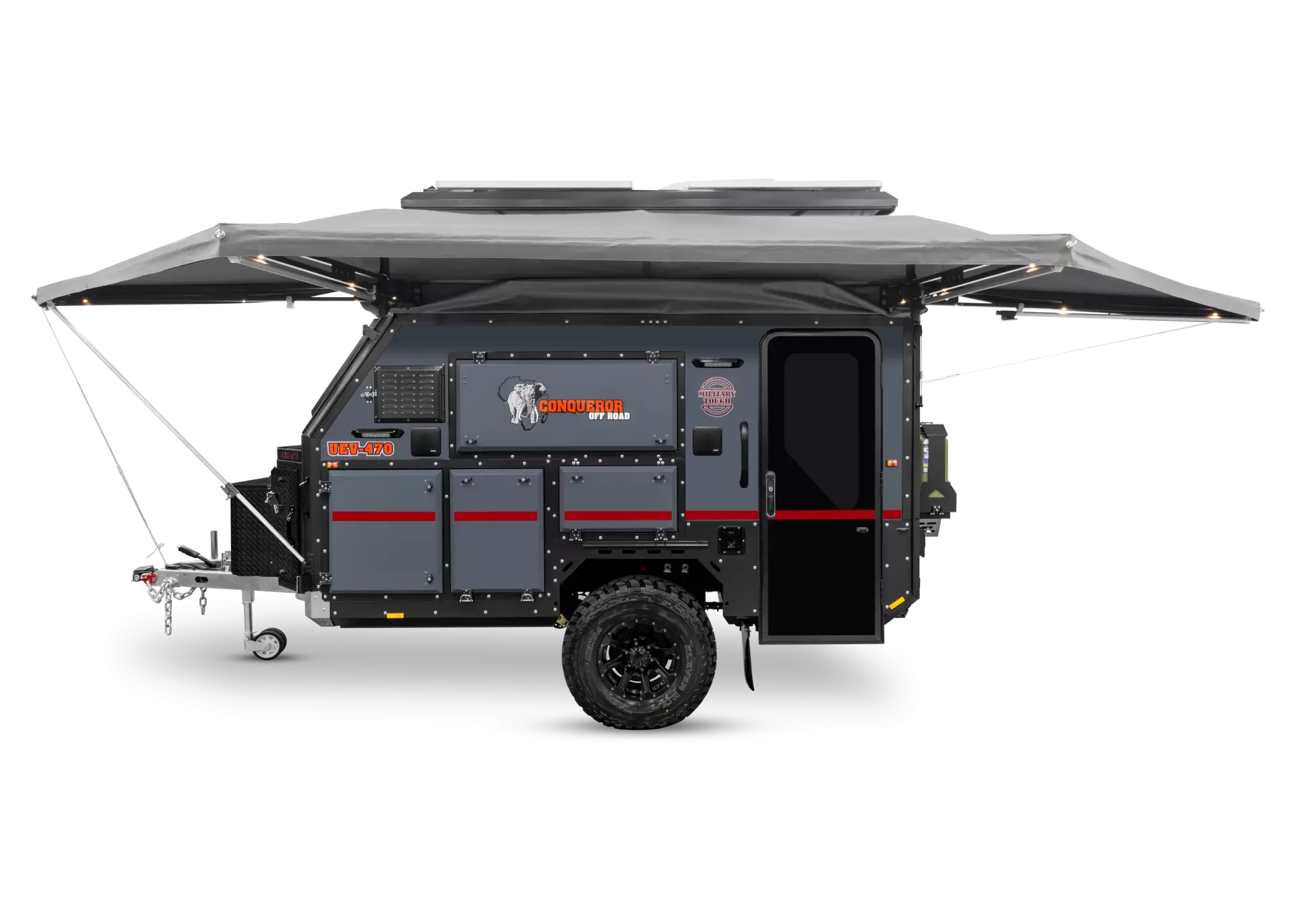

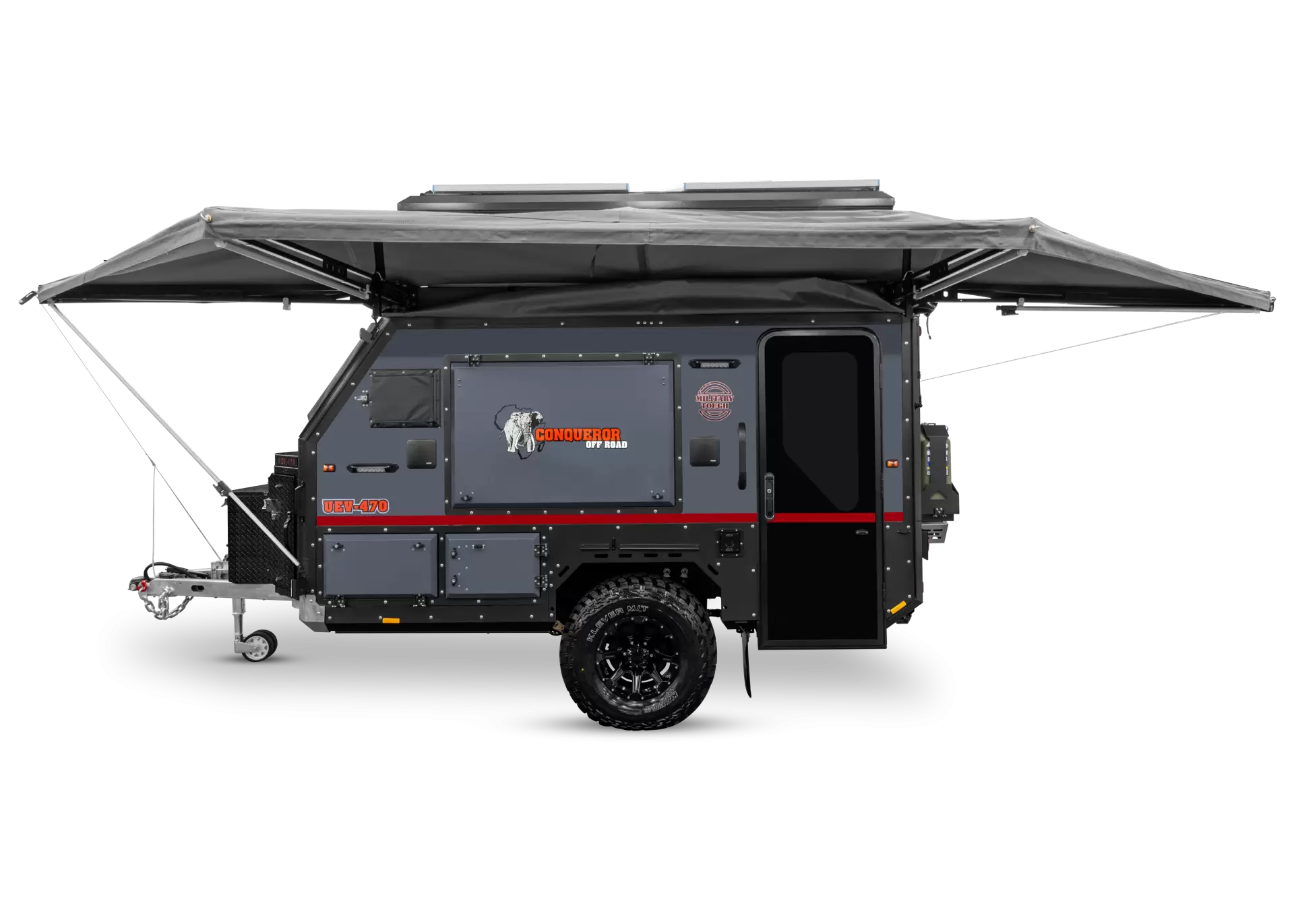

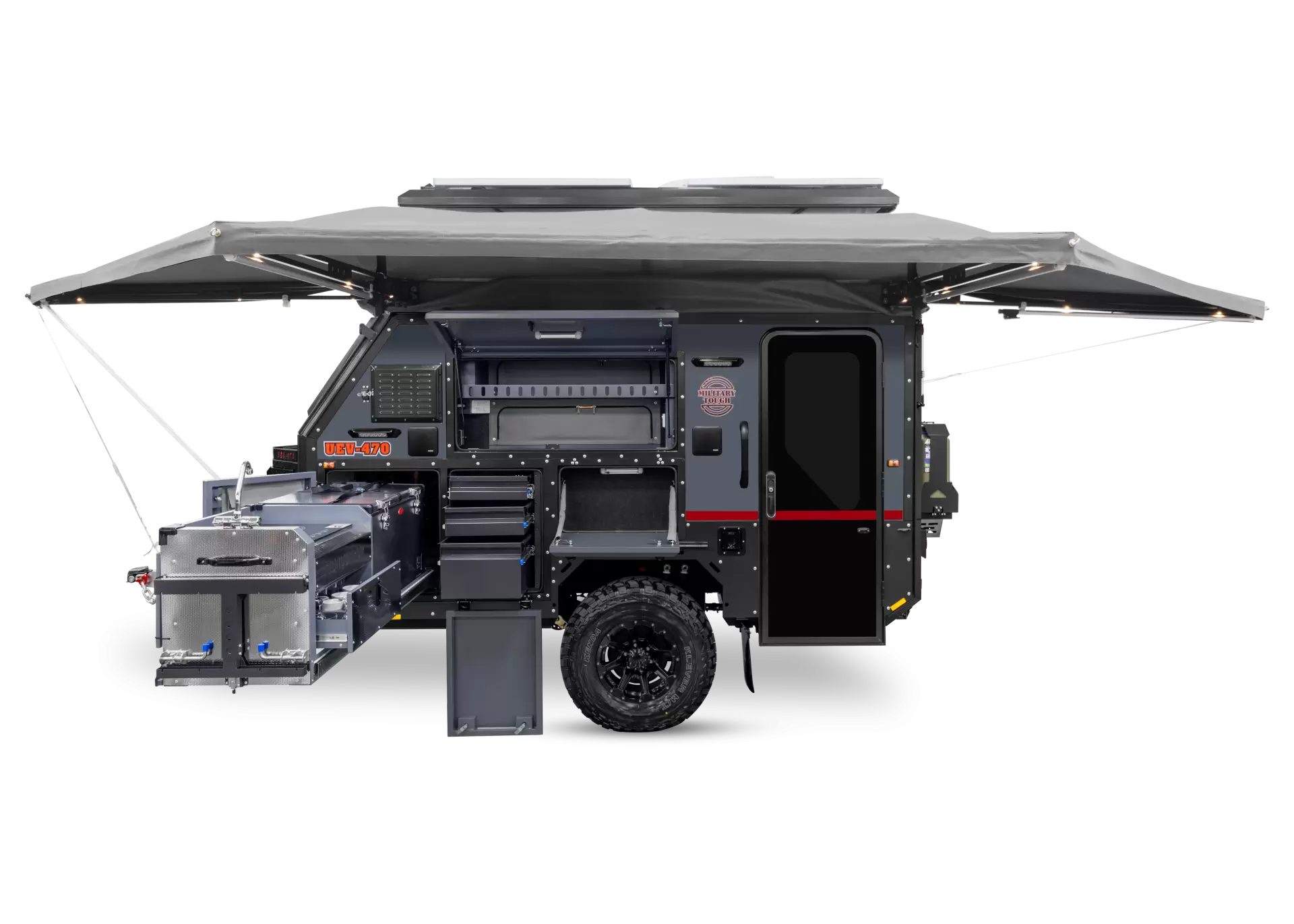

180° Awning or Electric Awning
Full Walls & Draught Skirt Kit for 180° Awning
Skylight Hatch & Blockout Blind (Without A/C)
Block-out Retractable Blinds
Midge-Proof Screens
Security Screen Door with Roll-Down Blind

Kitchen/Dining

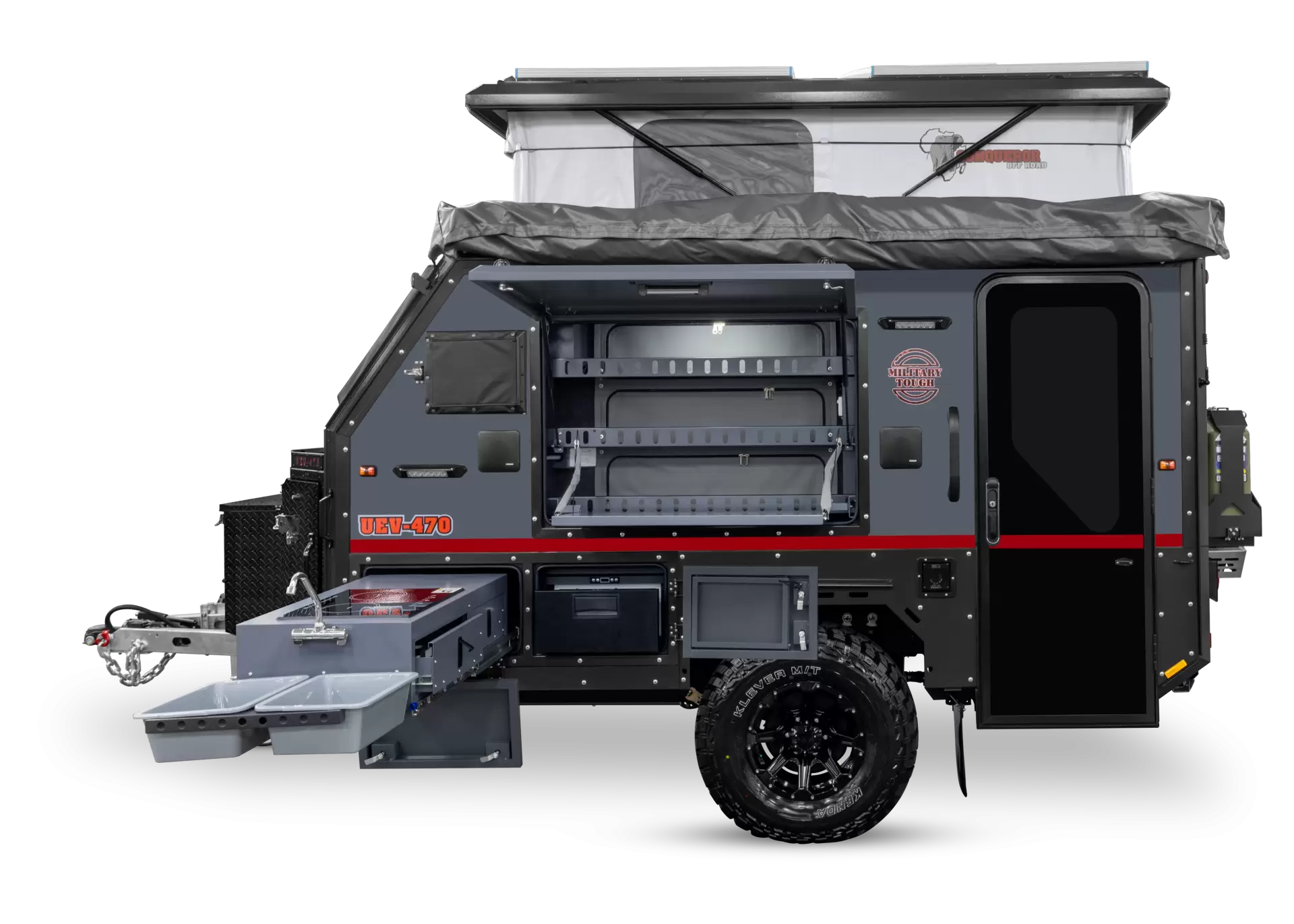

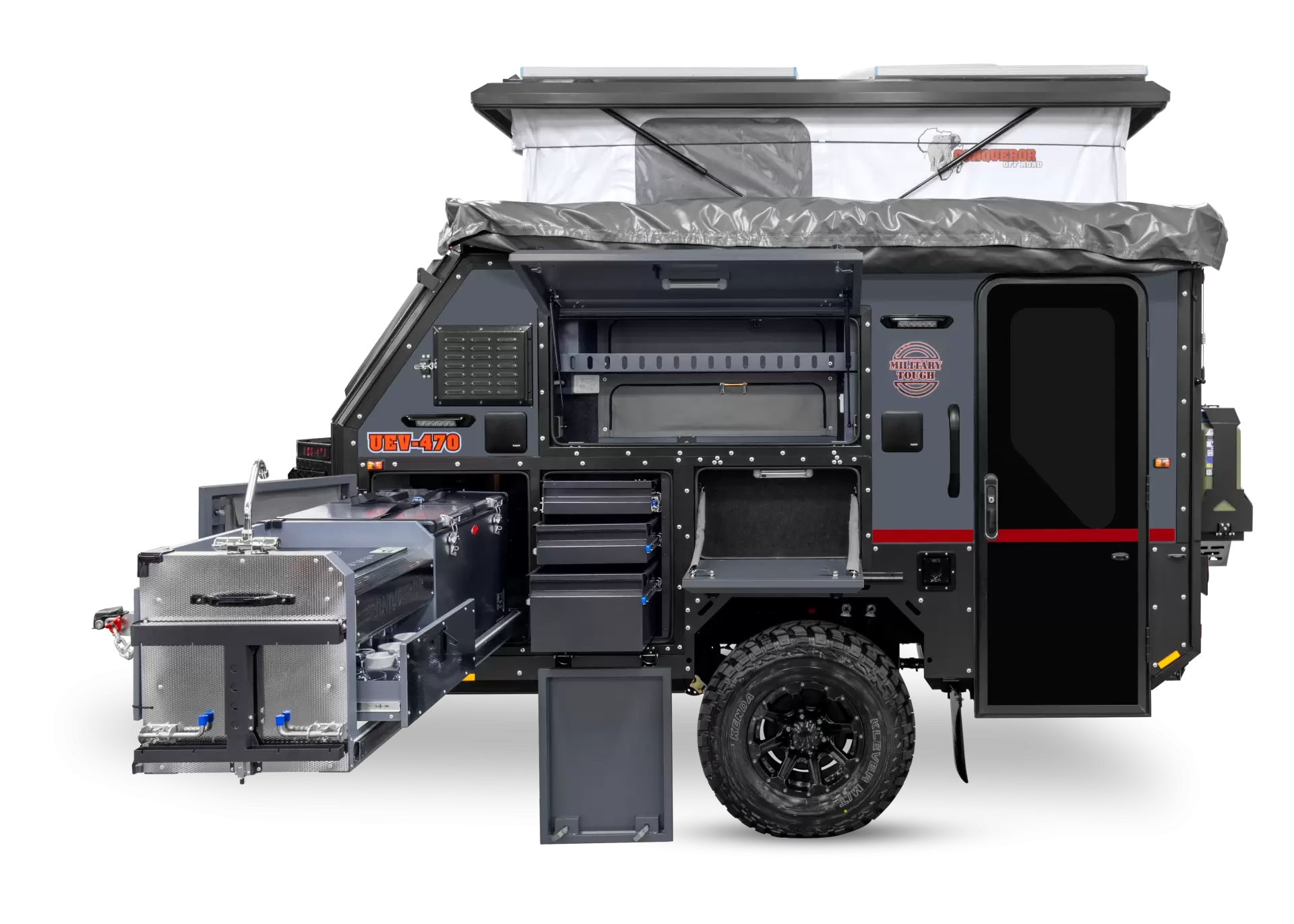

Conqueror External Slide Out Kitchen
Recessed 2-Burner Dometic Gas Cooktop (option for Induction)
82L External Fridge/Freezer (Couples Model)
30L External Drawer Fridge + 45L Internal Fridge (Family Model)
Twin External Wash Basins with Mixer Taps

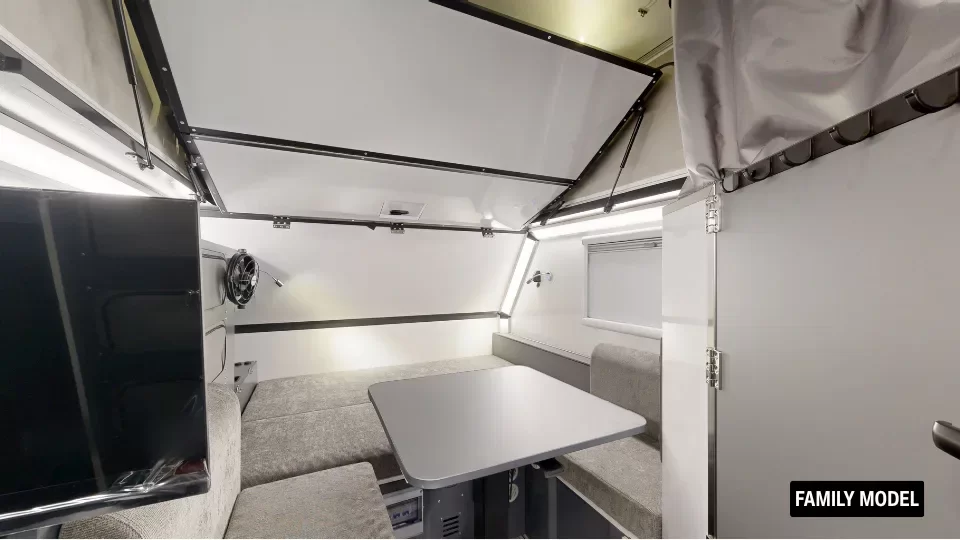

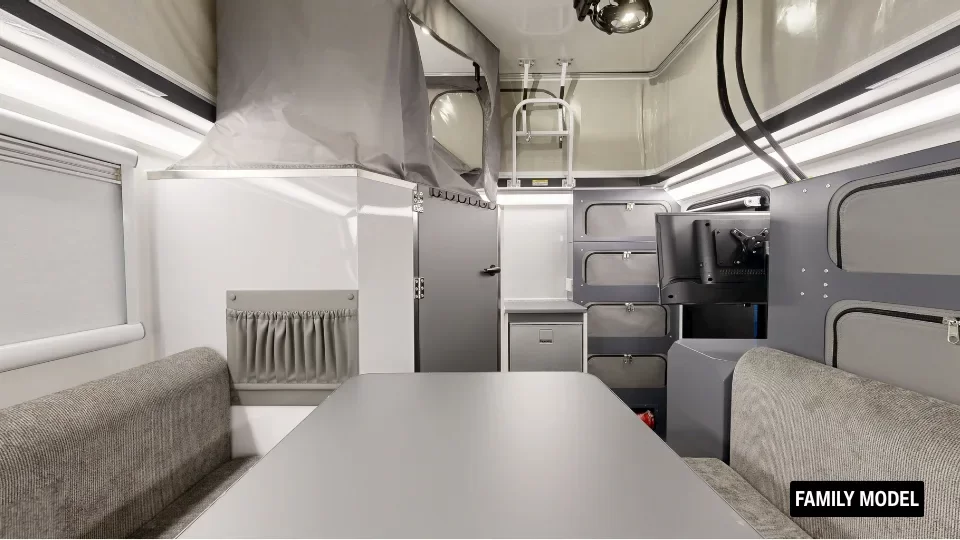

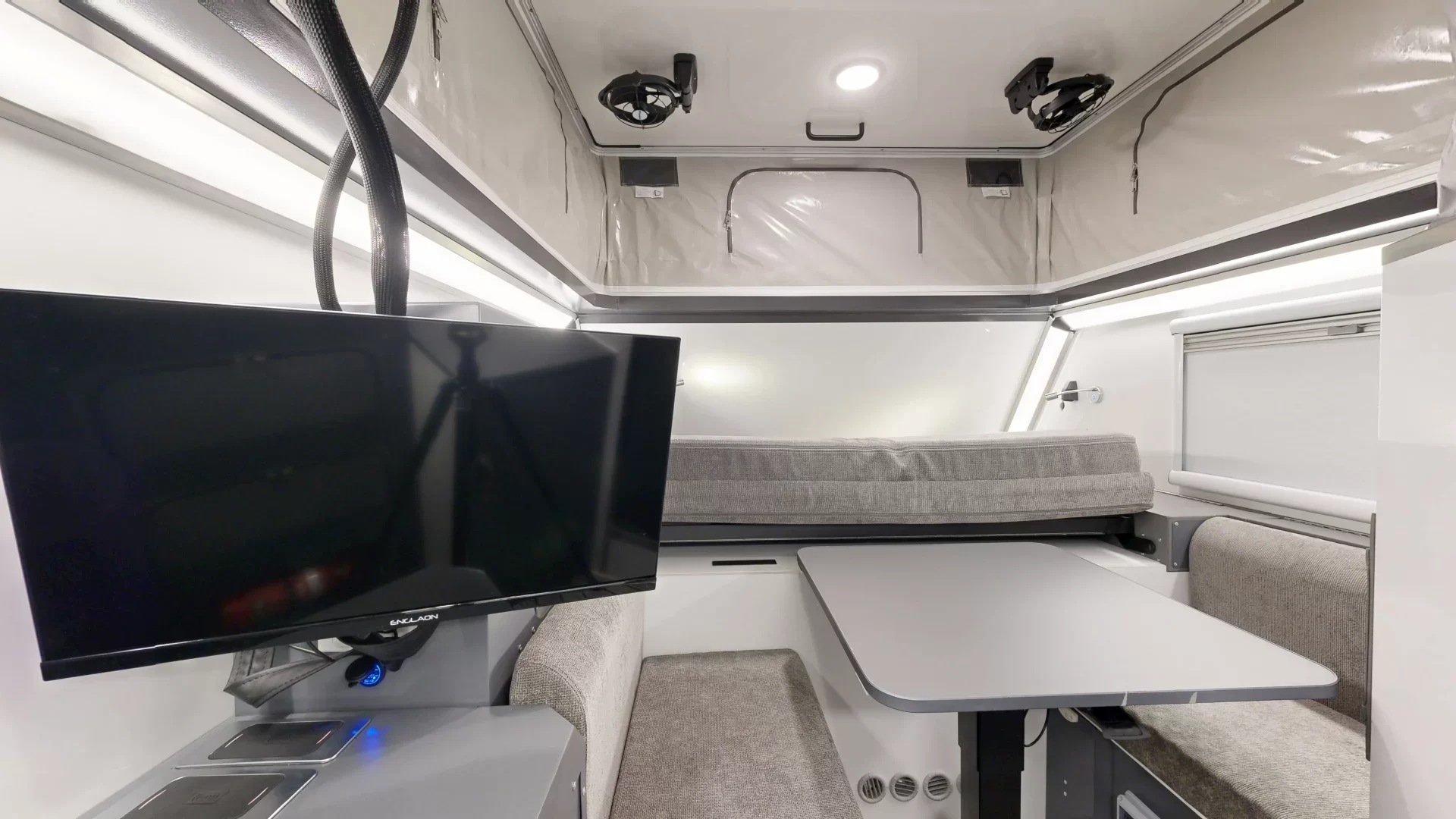

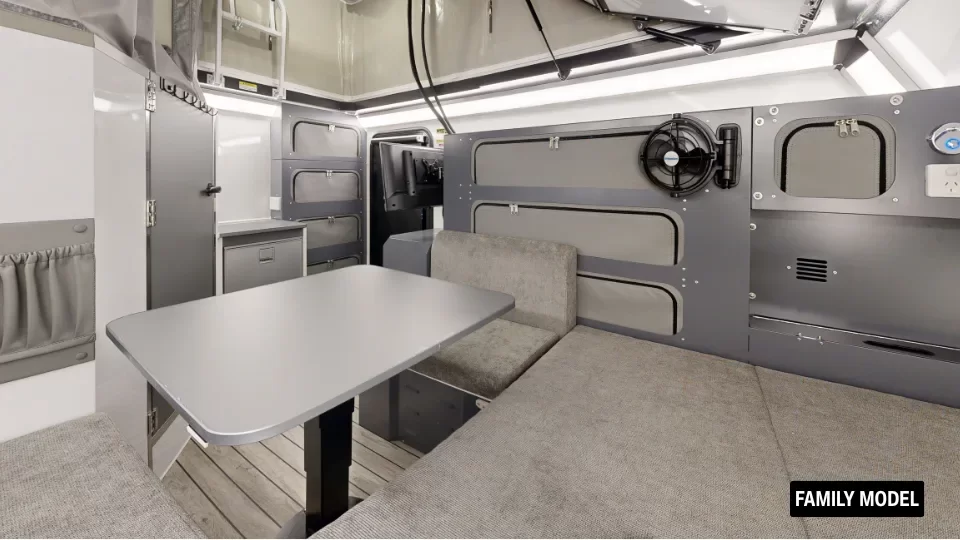

Internal Adjustable Dinette Table
External Pantry - accessible internally
Purpose Built Cutlery & Crockery Storage
Quality Cutlery & Crockery Set - includes plates, bowls, mugs, cups, tumblers, wine glasses, cutlery set, utensils

Power/Electrical

Standard UEV-470Redarc Alpha 50 ChargerBaintech 300AH Lithium BatteryRedarc 2000W Auto-Switching InverterRedarc Redvision Screen with Bluetooth AppRedarc TVMS (Total Vehicle Management)400W Roof-Mounted Solar Panels
UEV-470E - Gasless ModelRedarc Alpha 75 ChargerBaintech 600AH Lithium BatteryRedarc 3000W Auto-Switching InverterRedarc Redvision Screen with Bluetooth AppRedarc TVMS (Total Vehicle Management)400W Roof-Mounted Solar + 200W Portable Panels
Other Standard InclusionsTruma Combi Diesel Heater/Hot Water SystemDometic FreshJet 7 Lite Air-ConditioningExternal auxiliary Solar Inputs2 x Internal Wireless Charging PadsInternal & External USB-A/USB-C Charging PointsInternal Dual 240V GPO PowerpointsExternal 240V GPO PowerpointsInternal LED Lighting Throughout- Touch Ceiling Lights, Dimmable Reading LightsLED Lighting around Skylight Hatch2 x Internal Fans with remote control and timersExternal LED - White/Amber (Bug Detract) LightsIntegrated LED Soft Lighting in 180° AwningHandle & Footwell Lights20m 15A Extension Lead with AdaptorStarlink Ready
