The Ultimate Off Road Hybrid
Complete Off Road Caravan with all the Luxuries

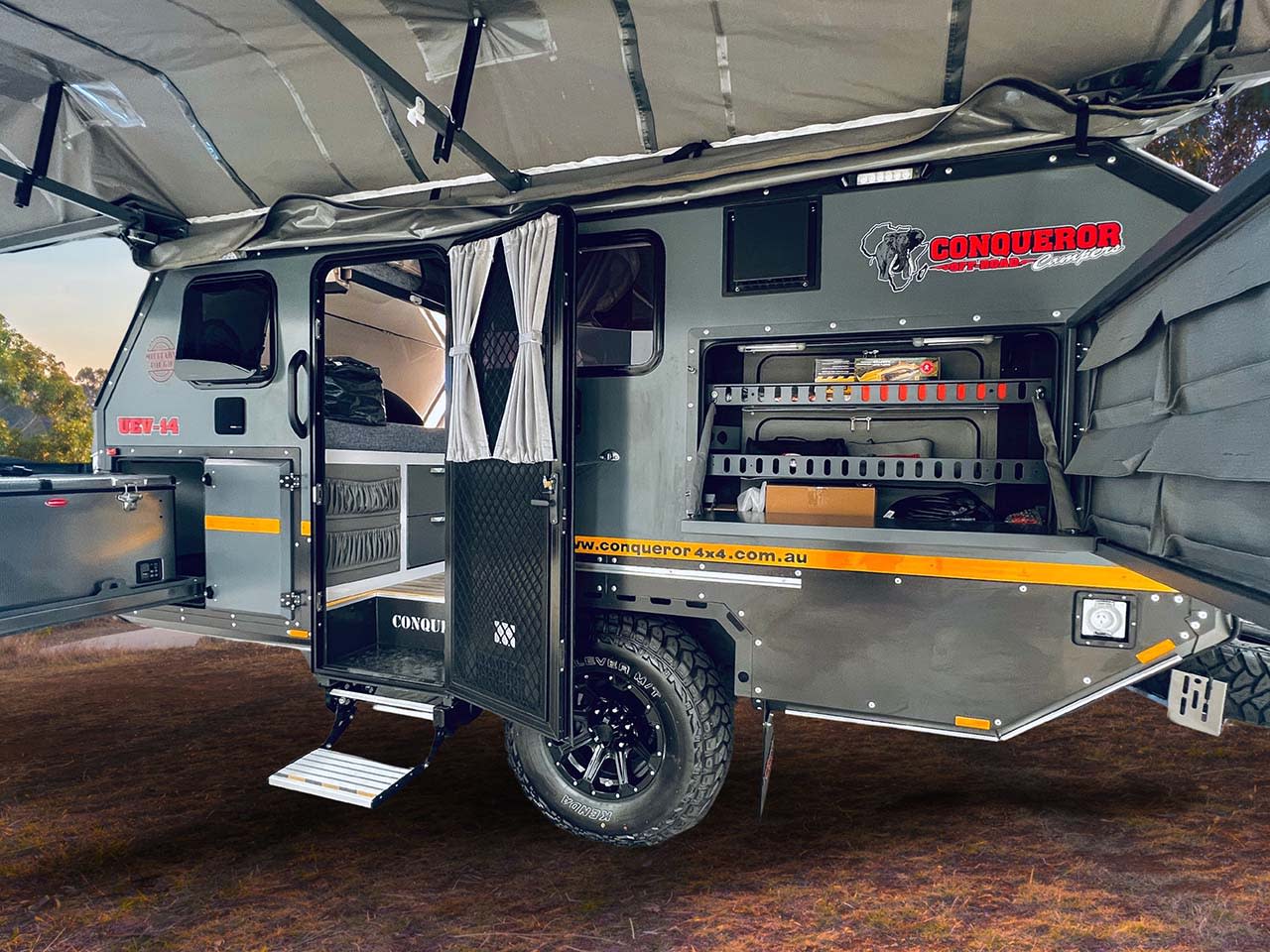

The Conqueror UEV-14 is our ultimate hybrid caravan, equipped for off road adventuring. Features an all-new patented independent suspension and hot-dipped galvanized chassis while the body comprises of an aluminium exo-skeleton and durable composite material borrowed from the aeronautical industry that provides excellent insulation and weight benefits. Equipped with heaps of unique features, like independent airbag suspension as standard, the UEV-14 sets up in just a few minutes and is perfectly designed for your off grid travels.
BODY / SUSPENSION / CHASSIS
WATER
STORAGE
SLEEPING & PROTECTION
KITCHEN & DINING
POWER / LIGHTING
ENTERTAINMENT
ENSUITE
OTHER
OPTIONAL UPGRADES
BODY / SUSPENSION / CHASSIS
- Aluminium Exo-Skeleton Frame
- Composite Panel Walls & Roof
- Cruisemaster DO35 All Terrain Pin Hitch
- Hot-Dipped Galvanised Chassis
- Button-Activated Independant Airbag Suspension
- Firestone Commercial Grade Airbags
- Airbag Man Compressor with external airline & gauge
- Ironman Heavy Duty Shock Absorbers
- Ark 750 Dual Wheel Jockey Wheel
- Kenda Mud Terrain Tyres 285/75/R16
- 16″ Black Alloy Wheels
- 1 x Spare Wheel
- Electric Drum Brakes
- Adjustable Front & Rear Stabilizers
- Trailer Breakaway System
- LED Rear Tail Lights
- Electric Entry Step
- Conqueror Stainless Steel BBQ Plate (Rear Wheel Cover)
- Axe & Spade included, with secure mounting
WATER
- 120L Rear Water Tank, 80L Front Water Tank
- 80L Grey Water Tank
- 2 x 20L Water Jerry Cans (externally mounted)
- Truma Combi Gas Hot Water System
- Hot Water Mixer Taps
STORAGE
- Powdercoated Front Storage Box with generator slide
- Powdercoated Gas Bottle Storage Box (suits 2x9kg bottles)
- 2 x External Lockable Hatches (driver’s side)
- 2 x External Drawers (kitchen side)
- BBQ Slide/Storage
- Slide (ideal for a generator)
- Front & Rear Firewood Racks
- Internal draws, cupboards plus zippered compartments
- Internal wall pockets
SLEEPING & PROTECTION
- Rear King Size Bed

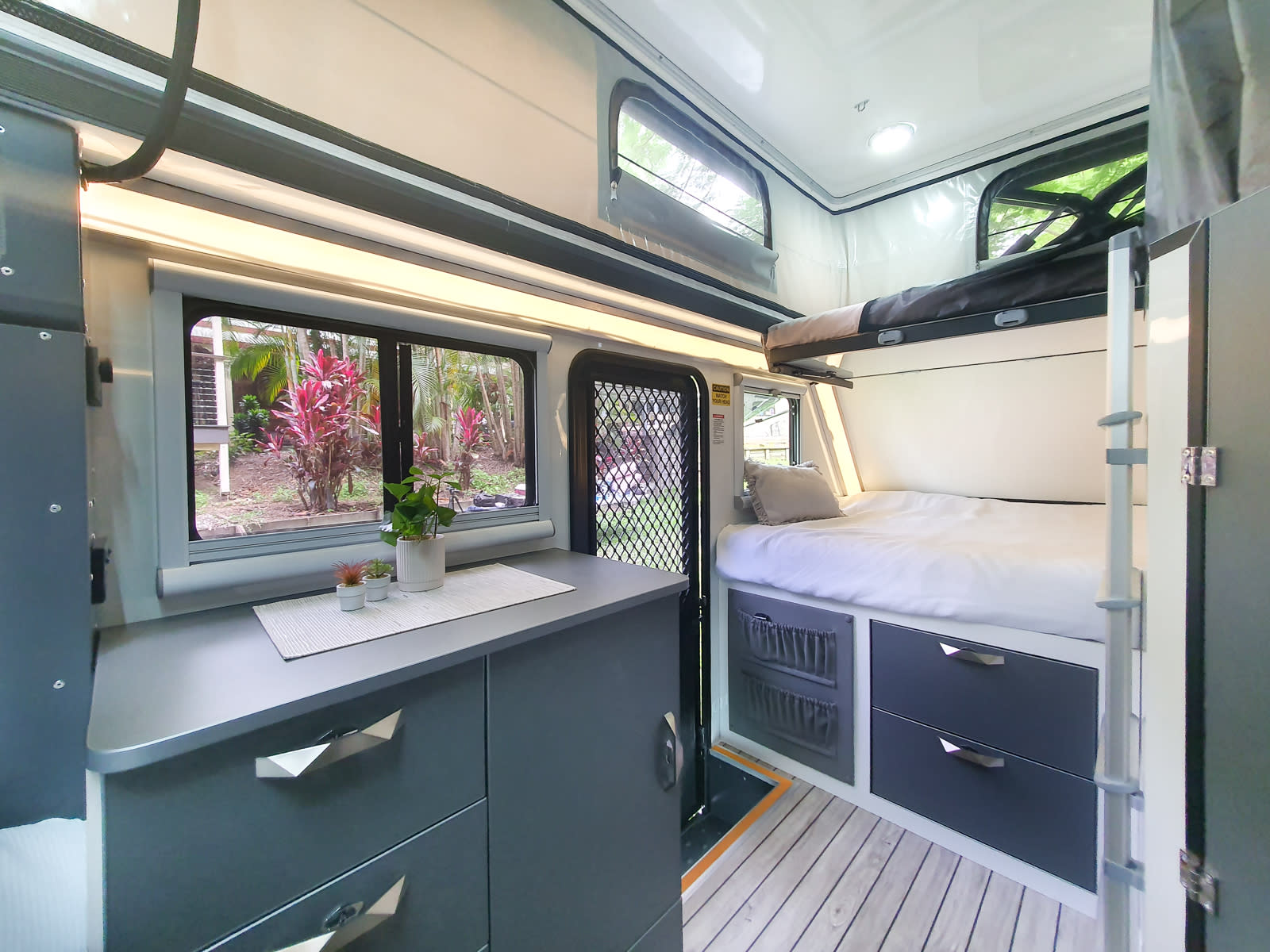

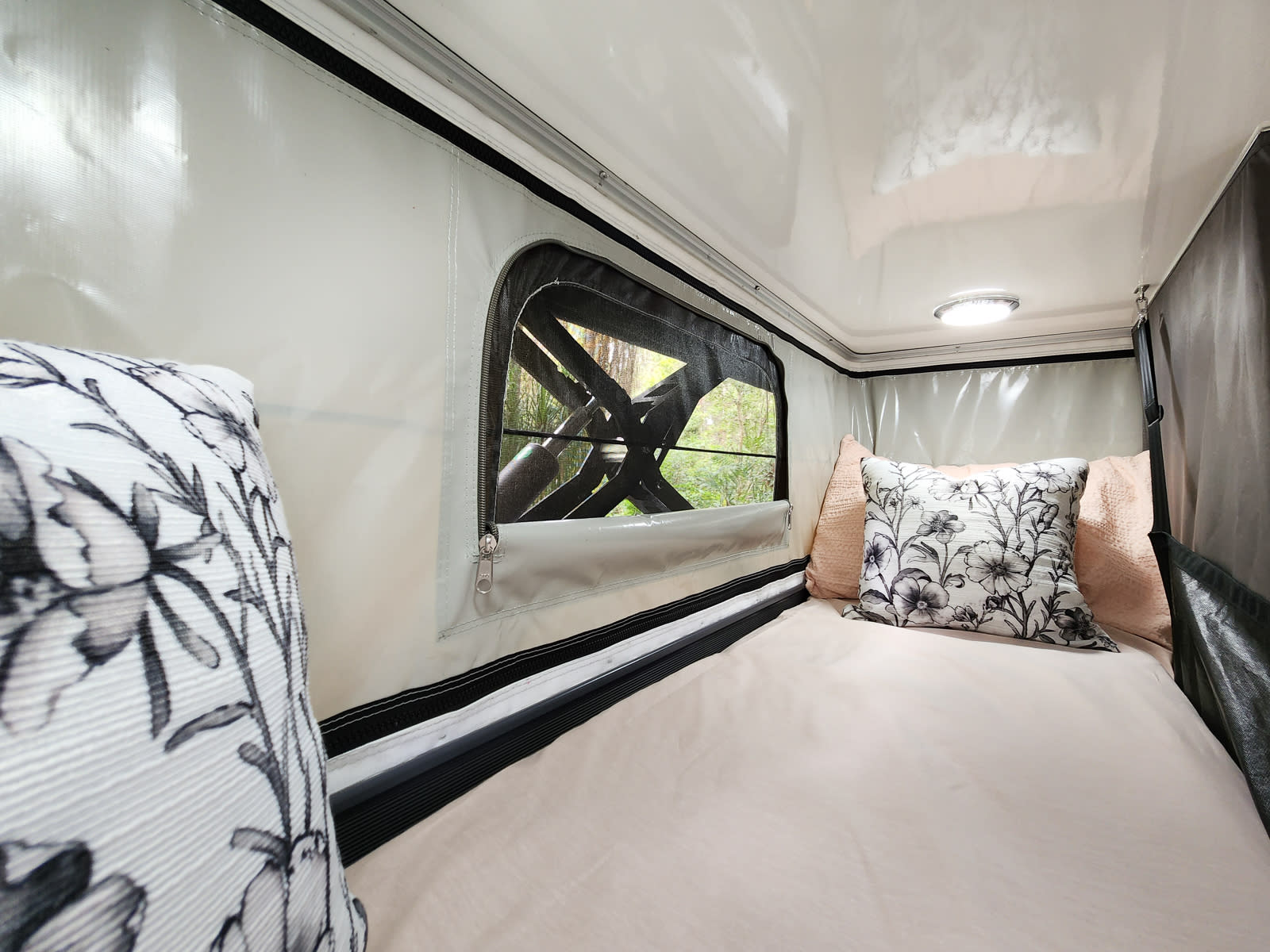

- Front Bunk – Double bottom bunk, single upper bunk
- Eggshell Memory Foam Mattress / Dinette Seating
- Includes 2 x Doonas, 4 x Pillows
- Fan for each bed area (4 in total)
- Choice of either a Conqueror 180° Batwing Awning
- or Electric Awning
- Canvas Walls included (for Batwing Awning)
- Block-out Retractable Blinds with Flyscreens
- Security Screen Door with Blind
- Midge-proof screens on all windows
KITCHEN & DINING

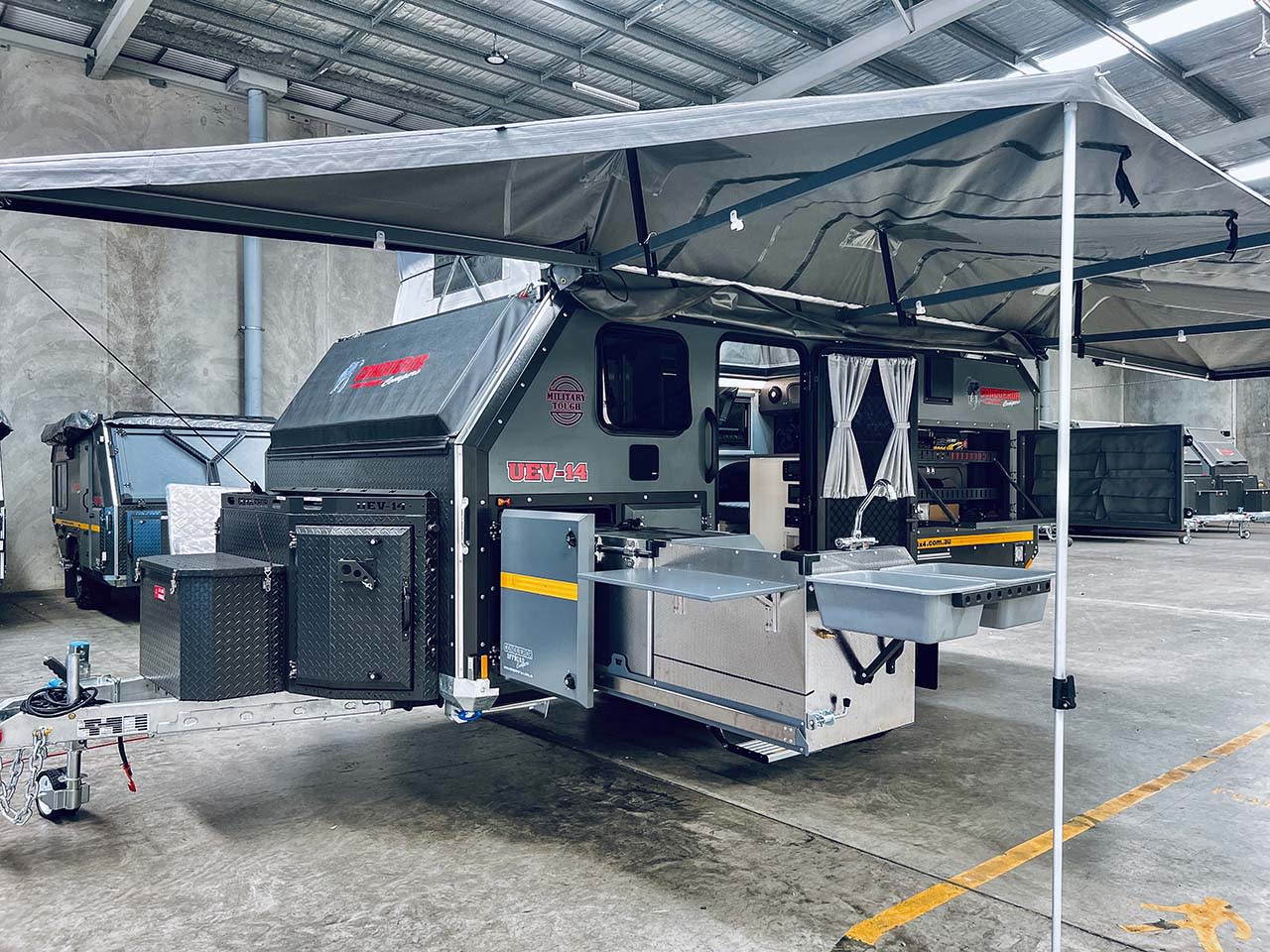

- Conqueror External Slide Out Kitchen
- Recessed 2-Burner Dometic Gas Cooktop
- Snowmaster 82L External Fridge/Freezer
- 76L Internal Fridge

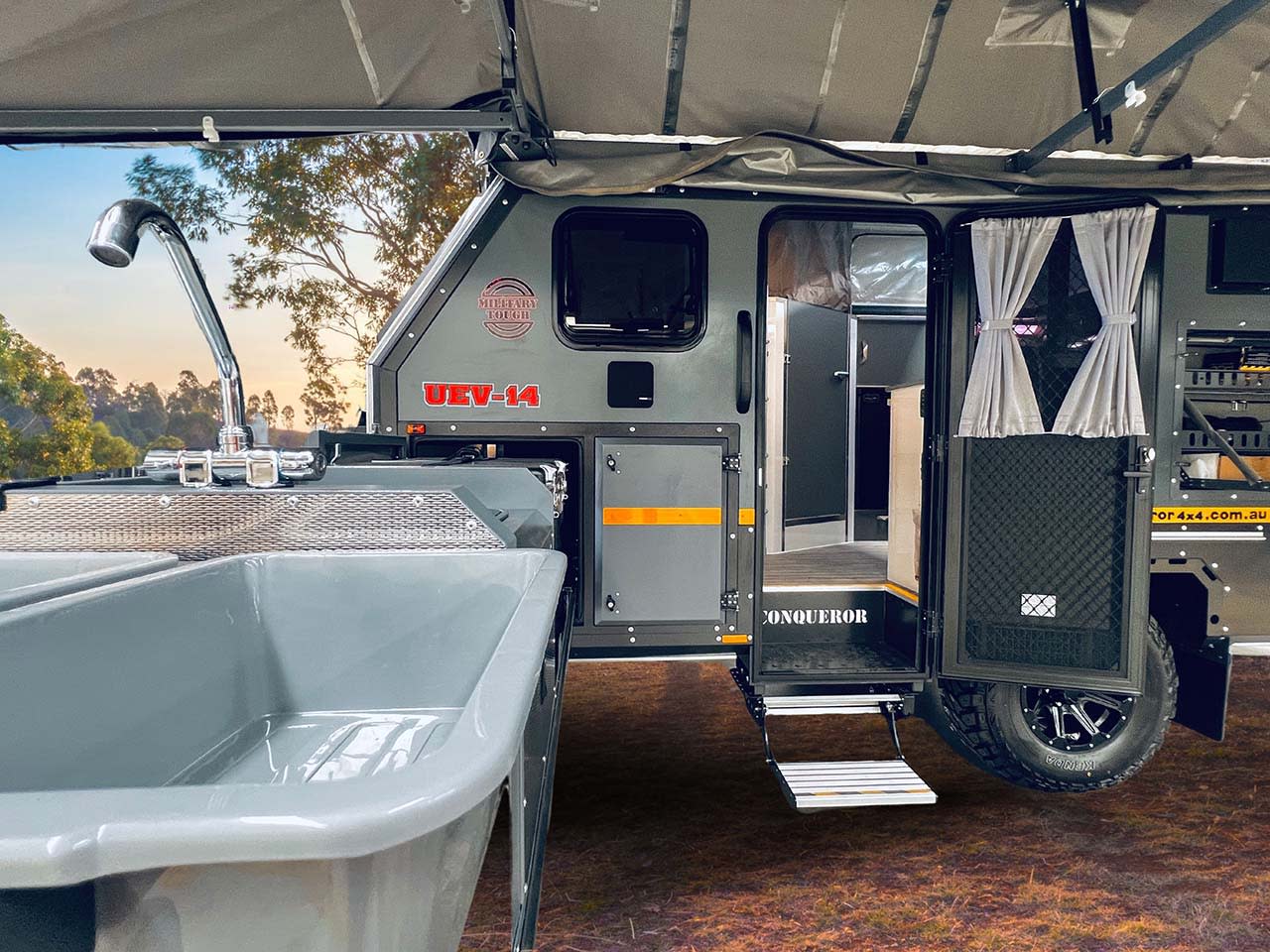

- Twin External Wash Basins with Hot Water Mixer Taps
- Internal Adjustable Dinette Table
- External Pantry (can also be accessed internally)

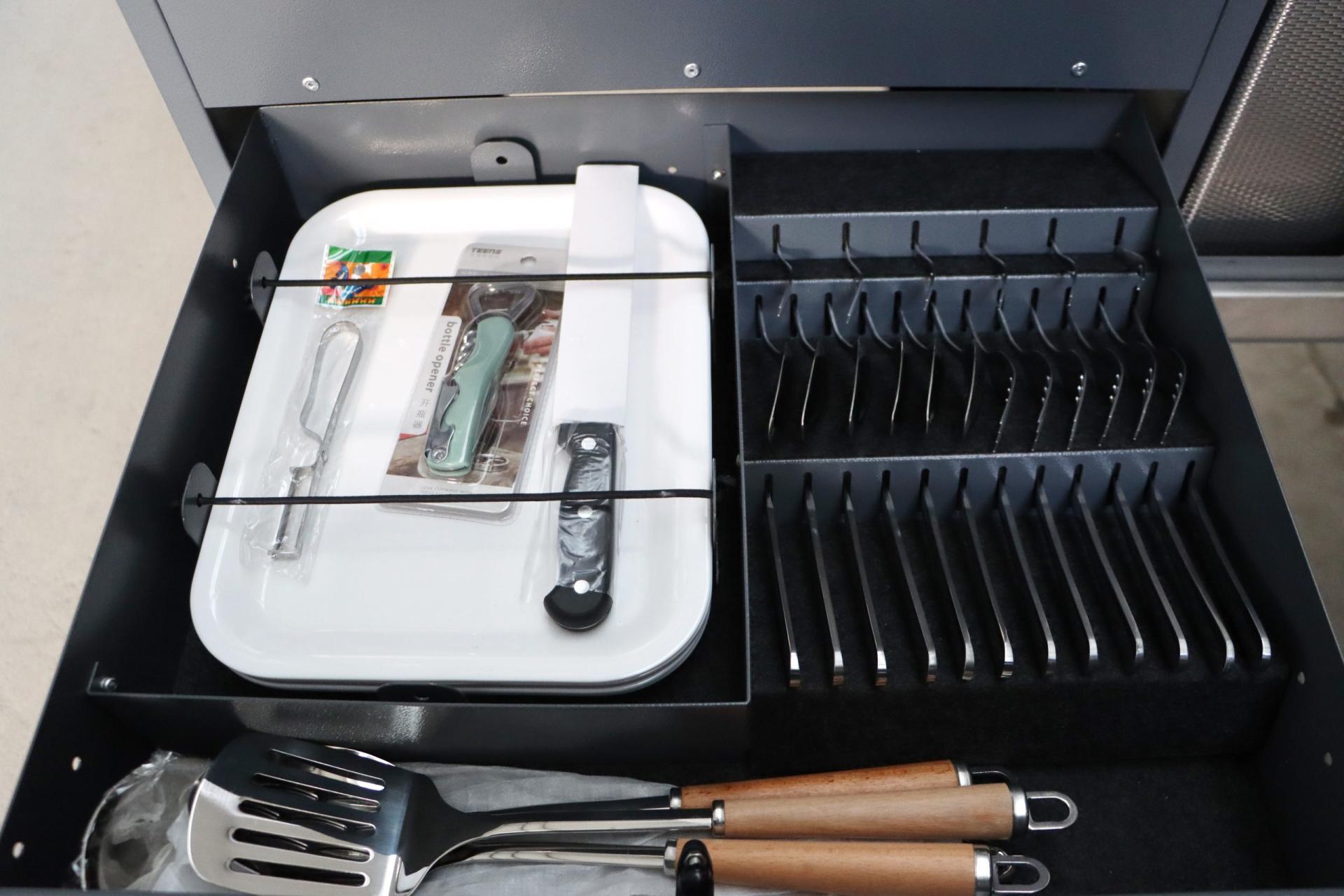

- Purpose Built Storage for cutlery & crockery (also included)
POWER / LIGHTING
- DC-DC Charger, 2x Solar Inputs 240-12V
- 2000 Watt Inverter
- 3 x 100AH AGM Batteries (upgradable to lithium)

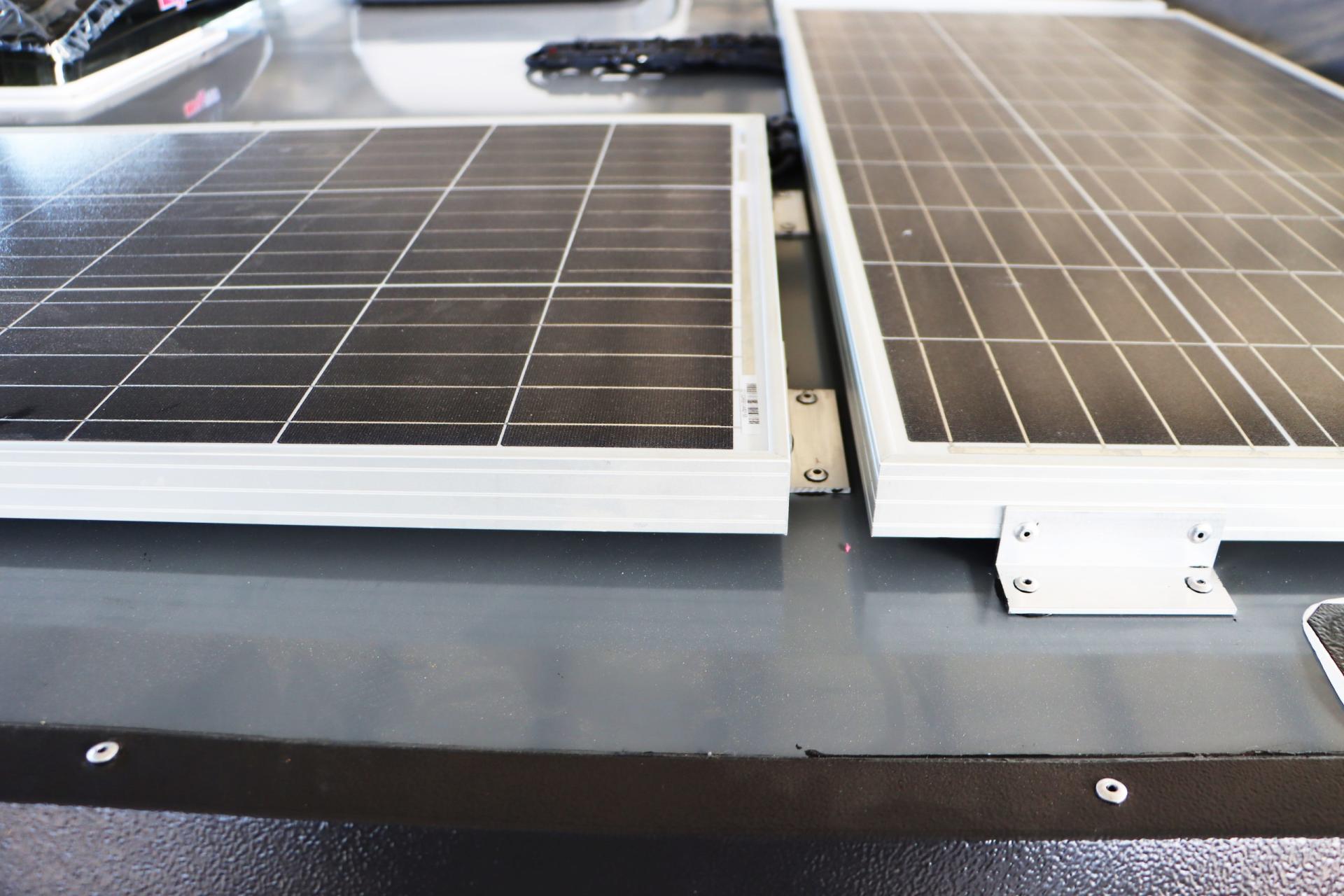

- 3 x 100 Watt Solar Panels
- 6 x USB Charging Points
- 2 x 240 GPO Powerpoints
- 3 x Internal LED Lights
- 4 x Internal Fans
- External Touch Lights with Amber (bug detract) Lighting
- Integrated LED soft lighting in Batwing Awning
- Handle Light
- Air-Conditioning & Gas Heater
ENTERTAINMENT
- 22″ TV/Media Screen Player – mounted with straps
- Fusion AM/FM/DAB Stereo with Bluetooth connectivity
- Zone Controlled Internal & External Speakers
ENSUITE
- Internal Combined Shower & Toilet
- Chrome adjustable shower head
- Thetford Cassette Toilet (cassette hatch on driver’s side)
- Internal Vanity Unit with Storage
- Internal Exhaust Fan & Touch Light
- Lockable ensuite door (internal)
- Mirror above Vanity Unit

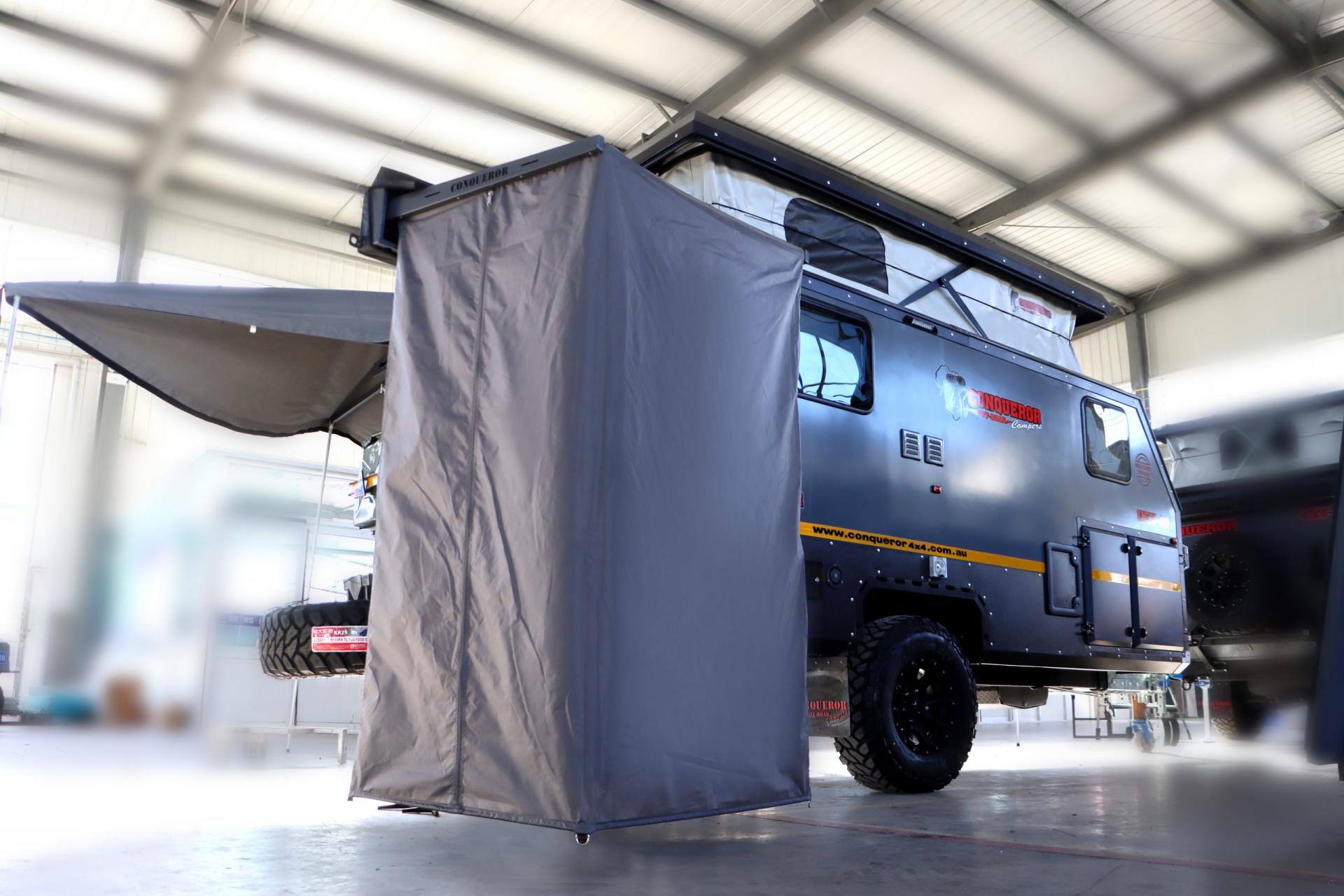

- External Shower
OTHER
- Dust Suppression System
- Dust-Proof Sealed Hatches
- Fire Extinguisher
- Timber-Look Flooring
- Includes 4 x Outdoor Chairs
OPTIONAL UPGRADES
- Lithium Battery Upgrade – 300/600/900AH
- Redarc Redvision System
- Redarc 2000 Watt Inverter
- Custom Twin Front Bike Rack (uses RockyMounts brackets)
Disclaimer: Specifications, features and inclusions are based on the 2024 model
Specifications
Name | Weight |
---|---|
Exterior Length | 6.5m (hitch to rear spare wheel) |
Exterior Width | 2.2m (body) 2.45m with batwing awning |
Exterior Height | 2.65m (to highest point AC unit) |
Suspension | Firestone Commercial Grade Airbags, Independent Trailing Arms |
Tare | 2,250kg | Ball 260kg |
ATM | 2,800kg |
Water Capacity | 280 Litres (120L Rear, 80L Front, 80L Grey Water Tank) |
AC Charger Output | 24A/14.7V (max) |
Occupant Capacity | 4 Adults or 2 Adults + 3 Kids |
Rear Bed Dimensions | 2000mm (L) x 1700mm(W) |
Twin Bunk Bed Dimensions | 2150mm (L) x 1200mm (W) |
Single Bunk Bed Dimensions | 1750mm (L) x 600mm (W) |
Disclaimer: Specifications, features and inclusions are based on the 2024 model
