THE COMPLETE OFF-ROAD CARAVAN

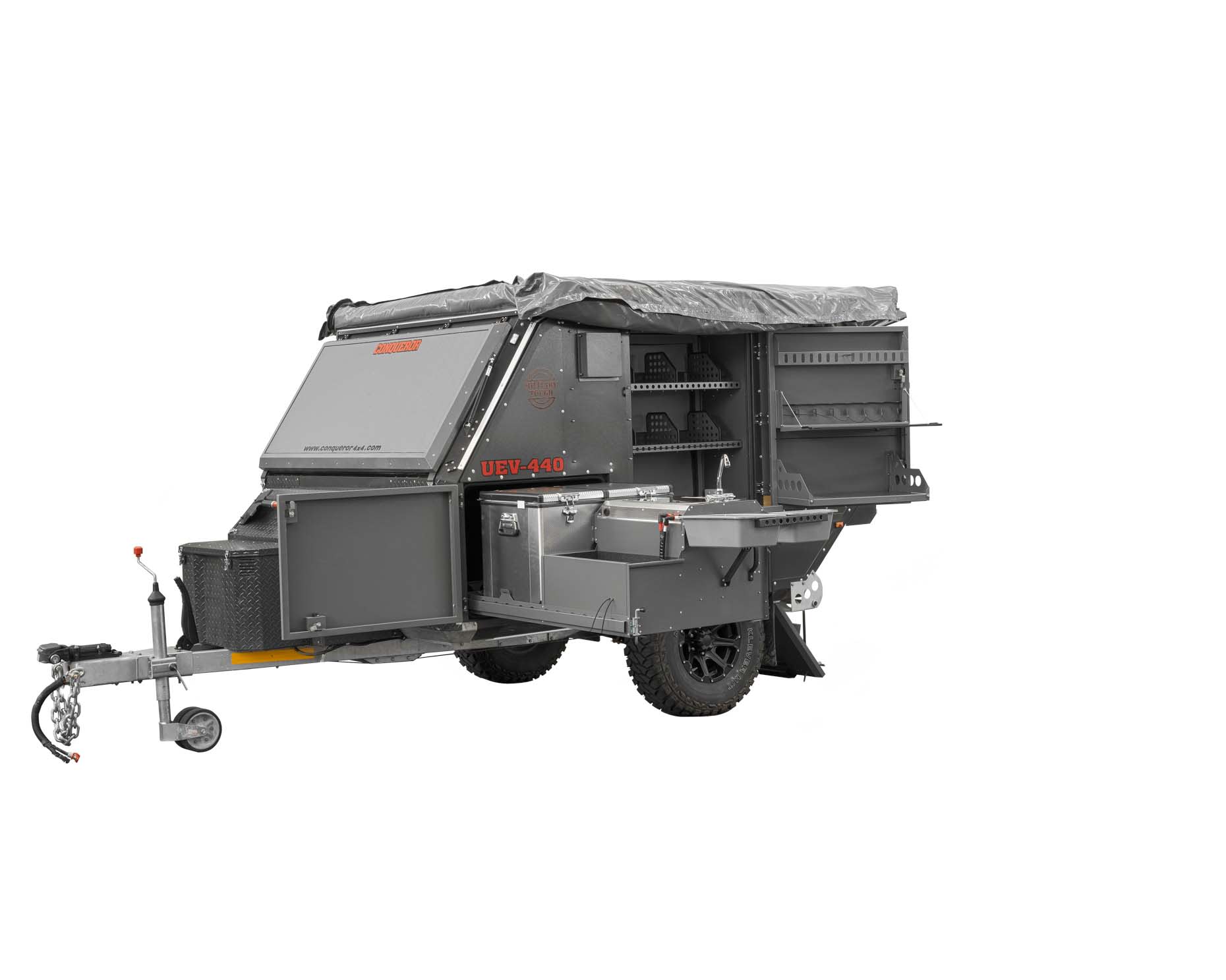

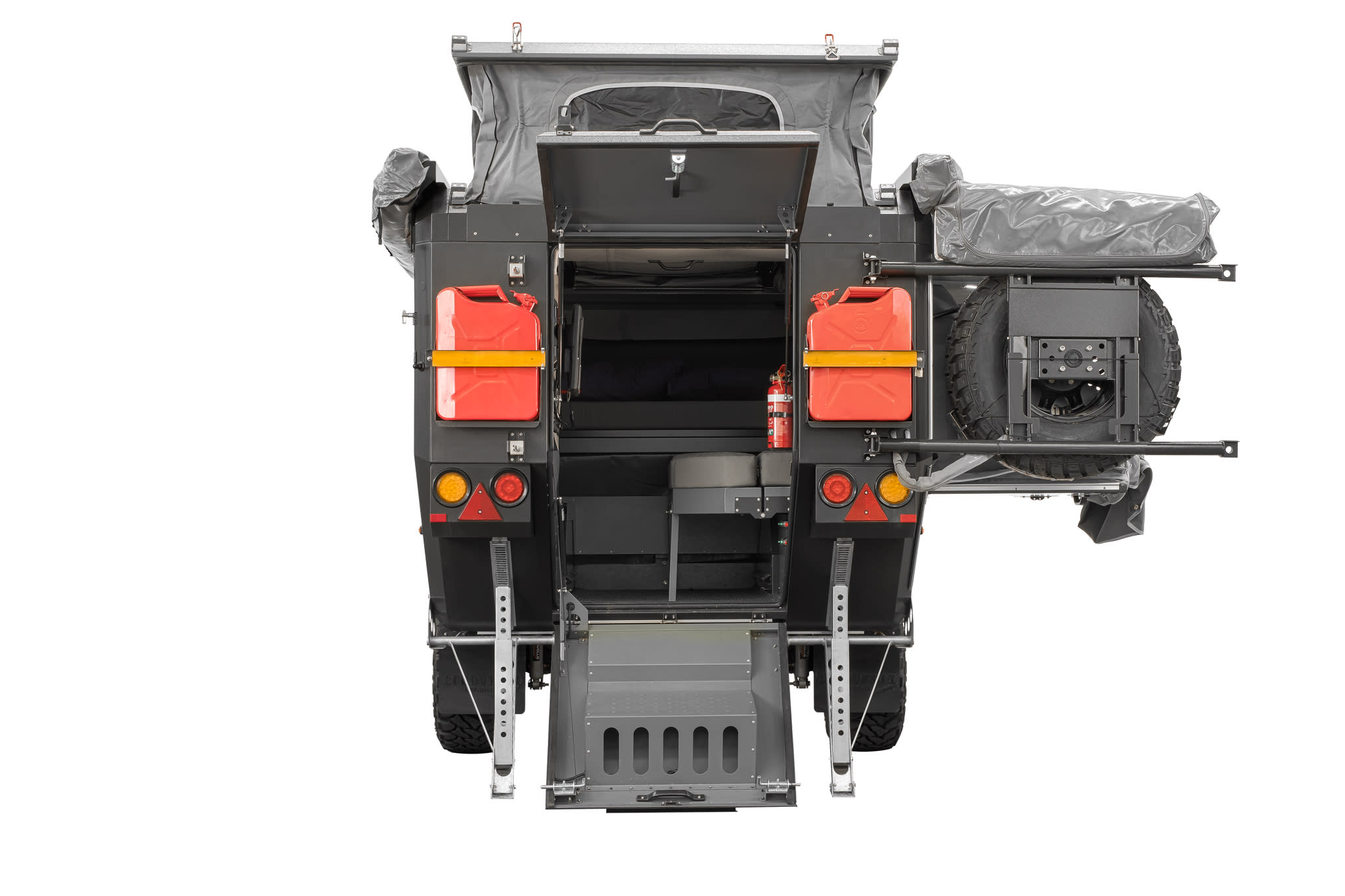

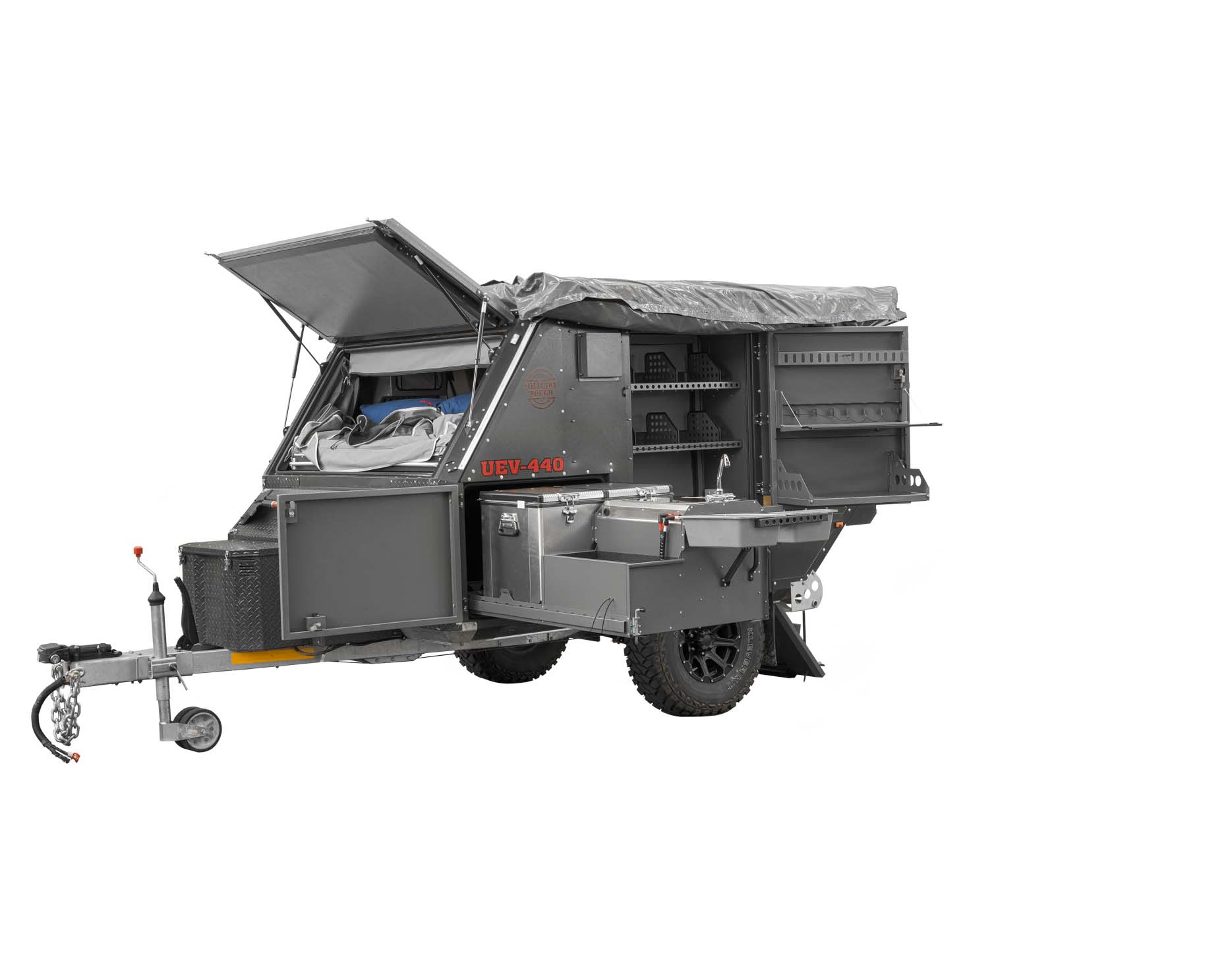

Rear Entry Off-road Caravan

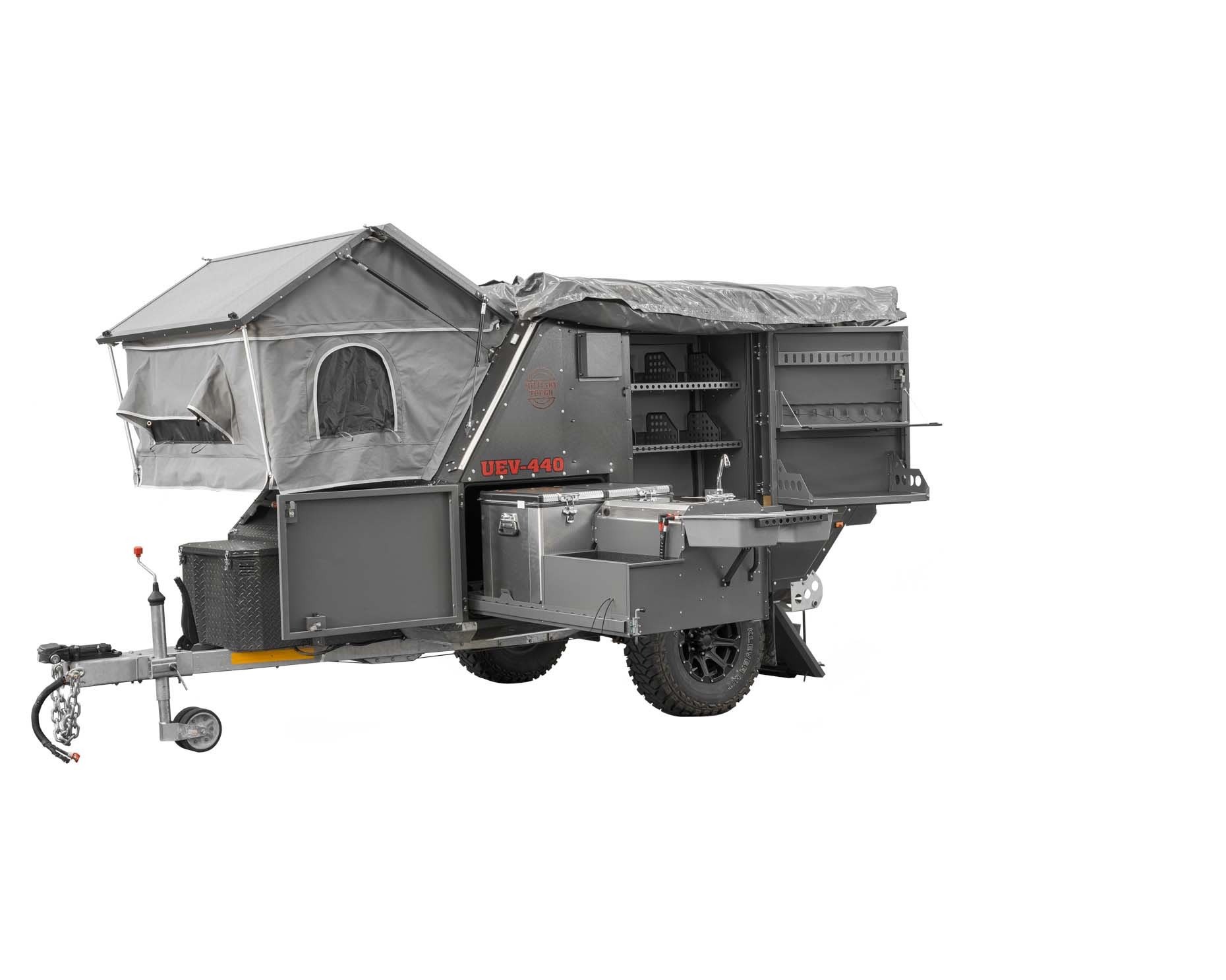

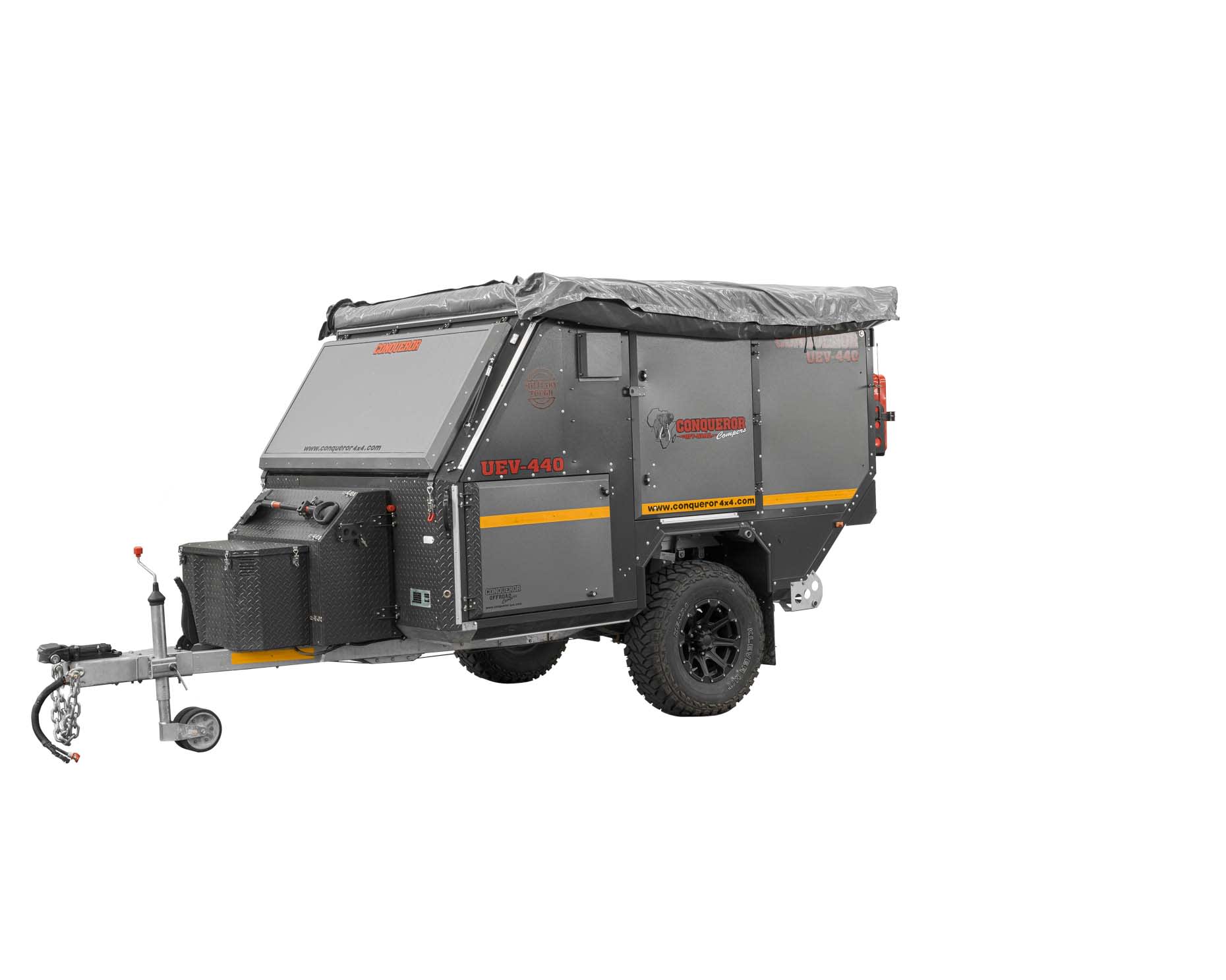

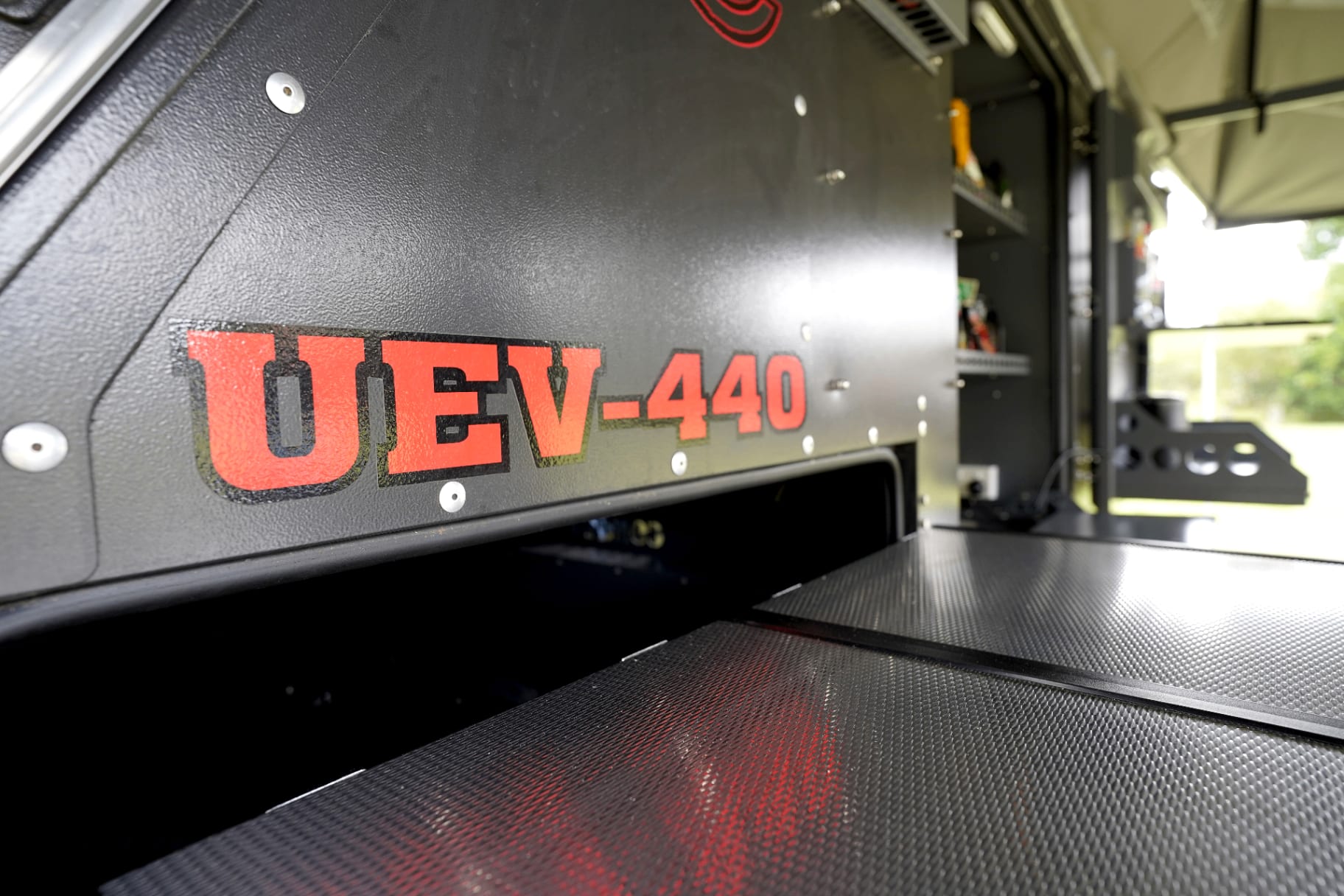

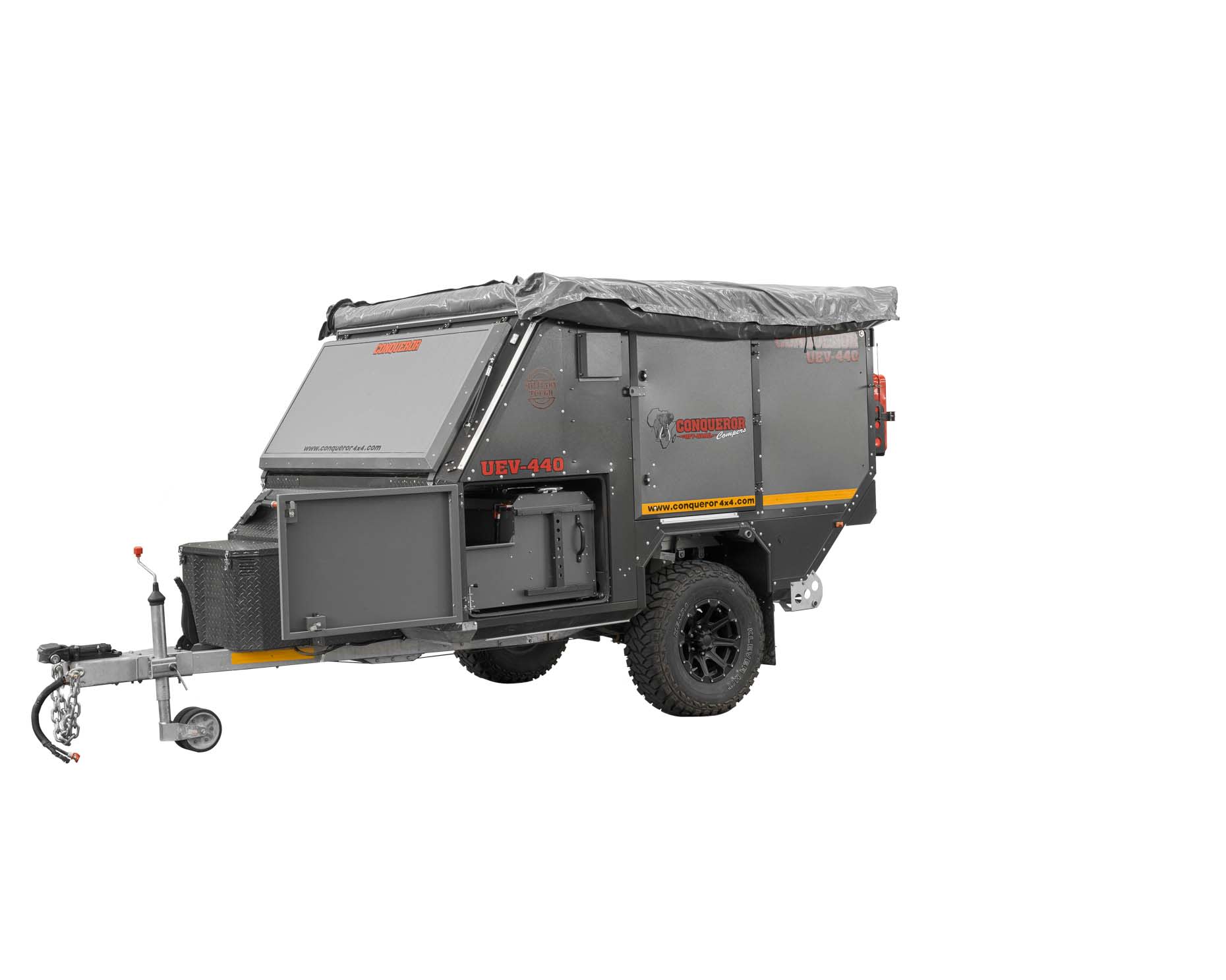

The multi-award-winning UEV-440 has been setting the standard for compact caravan design in Australia. Assembled using aeronautical building techniques and materials commonly used in the motor industry, this camper offers all the comfort and conveniences you could ever need. The UEV-440 includes all the features Australian off-road campers have ever wished to have in their own. You can check out the videos on our videos page.
BODY / CHASSIS / SUSPENSION
WATER
STORAGE
CANVAS / COVER / PROTECTION / SLEEPING
KITCHEN / COOKING / RELAXING
POWER / LIGHTING
ENTERTAINMENT
BATHROOM
OTHER
OPTIONS
BODY / CHASSIS / SUSPENSION
- DO-35 Hitch
- Hot Dipped Galvanised Chassis
- Light Truck Mud Terrain Tyres (285/75/R16)
- 16″ Alloy Wheels
- Fully Independent Suspension
- Commercial Grade Airbags with bump stops
- On Board Air Compressor with external airline / hose and gauge
- 2 x Front Stabaliser Arms
- Adjustable Rear Stabalisers
- Heavy Duty Shock Absorbers and Airbags
- Dual Wheel Jockey Wheel
- Emergency Stub Axle

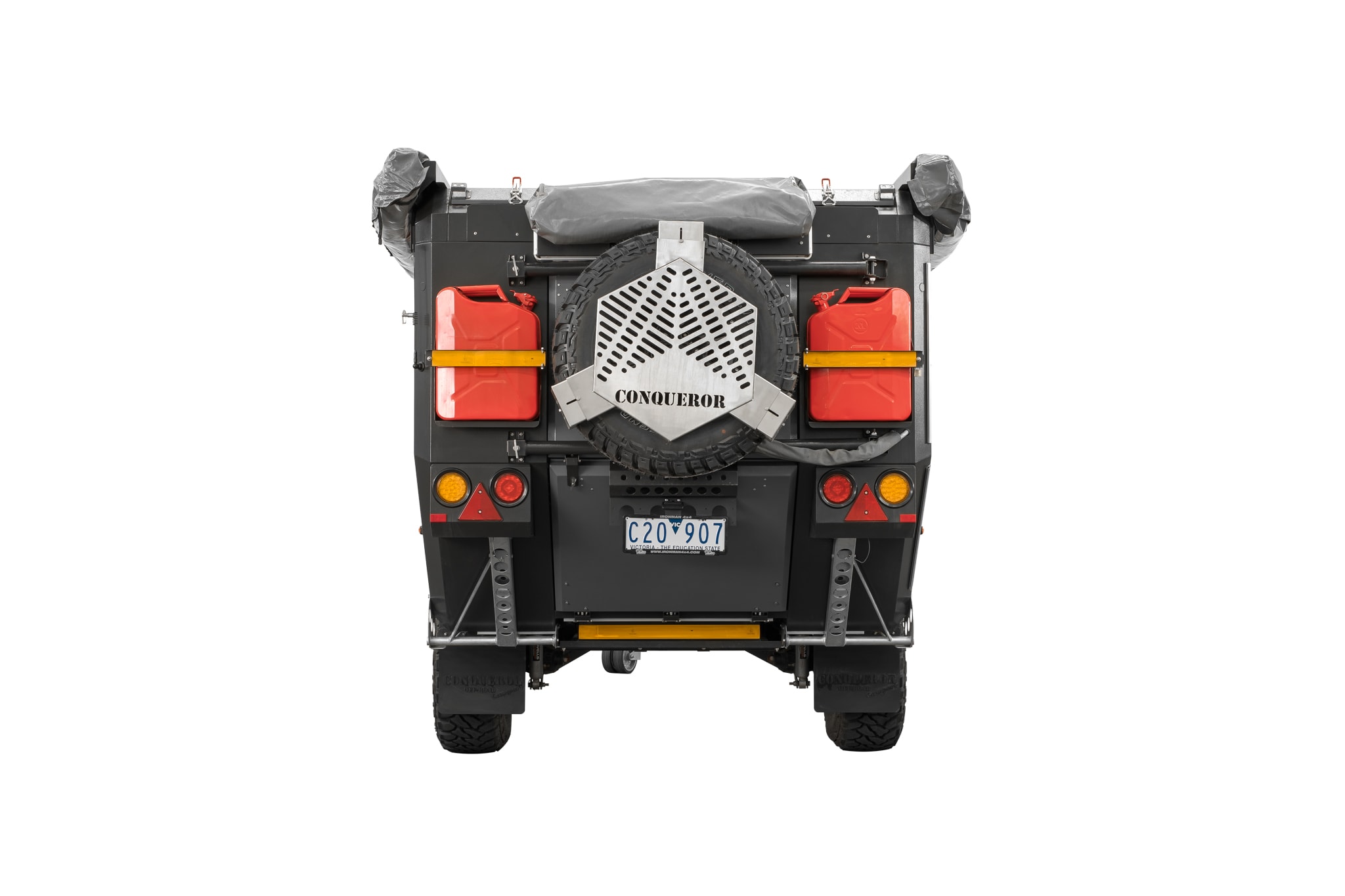

- Full size spare wheel
- Electric Brakes
- High Lift Jacking Points (Requires Adaptor)
- Mud Flaps
- LED rear tail lights
- Axe with secure mounting
- Spade with Secure mounting
WATER
- 150L Water Tank with Lockable Cap
- Water Flow Meter
- Electric Water Pump with Charcoal Filter
- Drawbar Tap
- Hot Water Mixer Taps
- Hot Water Unit
STORAGE
- Powder coated front storage box
- Powder coated gas bottle storage (up to 2 x 9kg Gas Bottles)
- External lockable storage cupboard with Canvas Storage Pockets
- Long side storage (ideal for fishing rods)

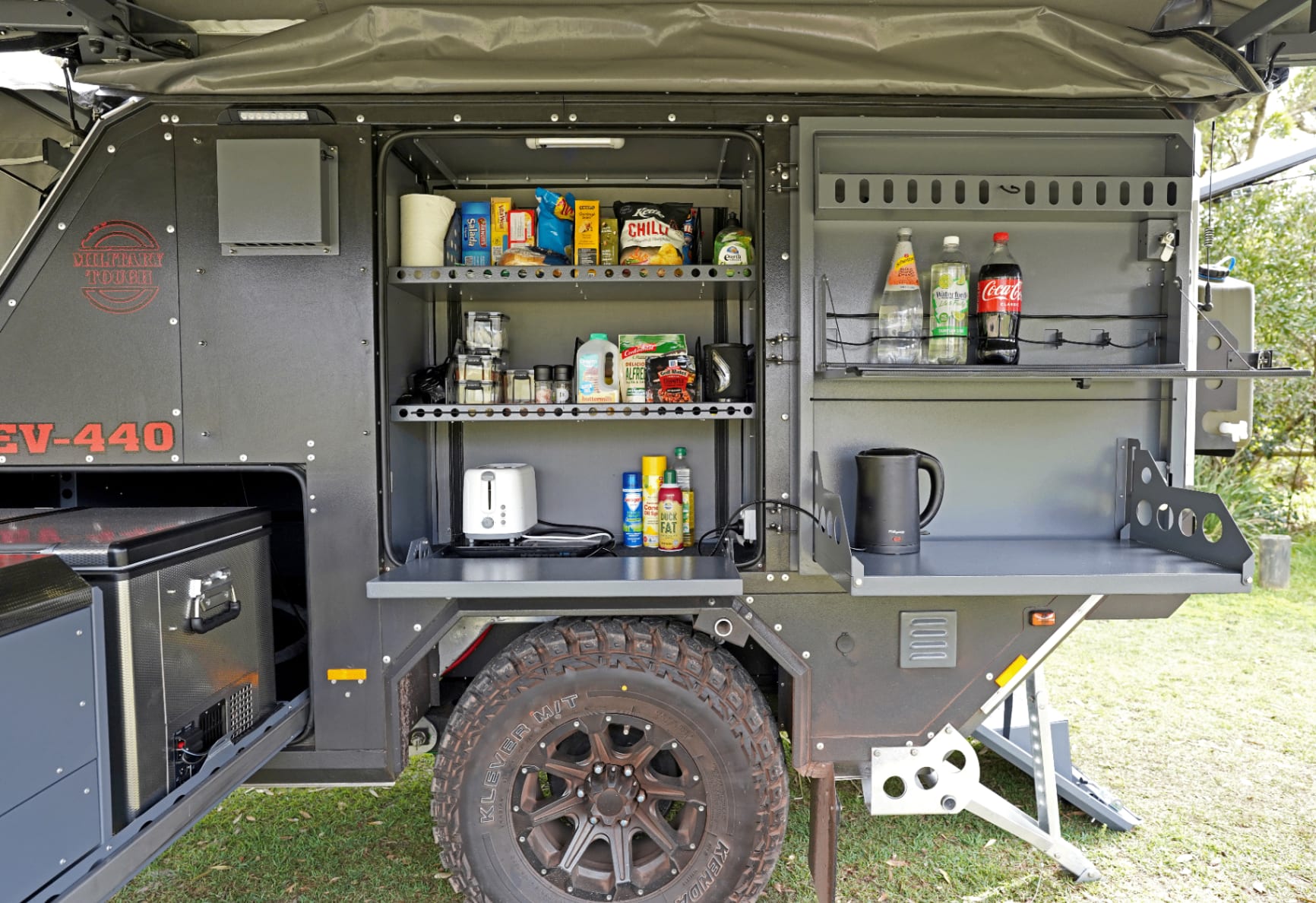

- Pantry with internal / external access
- 4 x internal cupboards with canvas doors + additional shelving
- 18 x Internal Tie down eyelets
- 2 x Jerry Cans
CANVAS / COVER / PROTECTION / SLEEPING
- Rip stop canvas

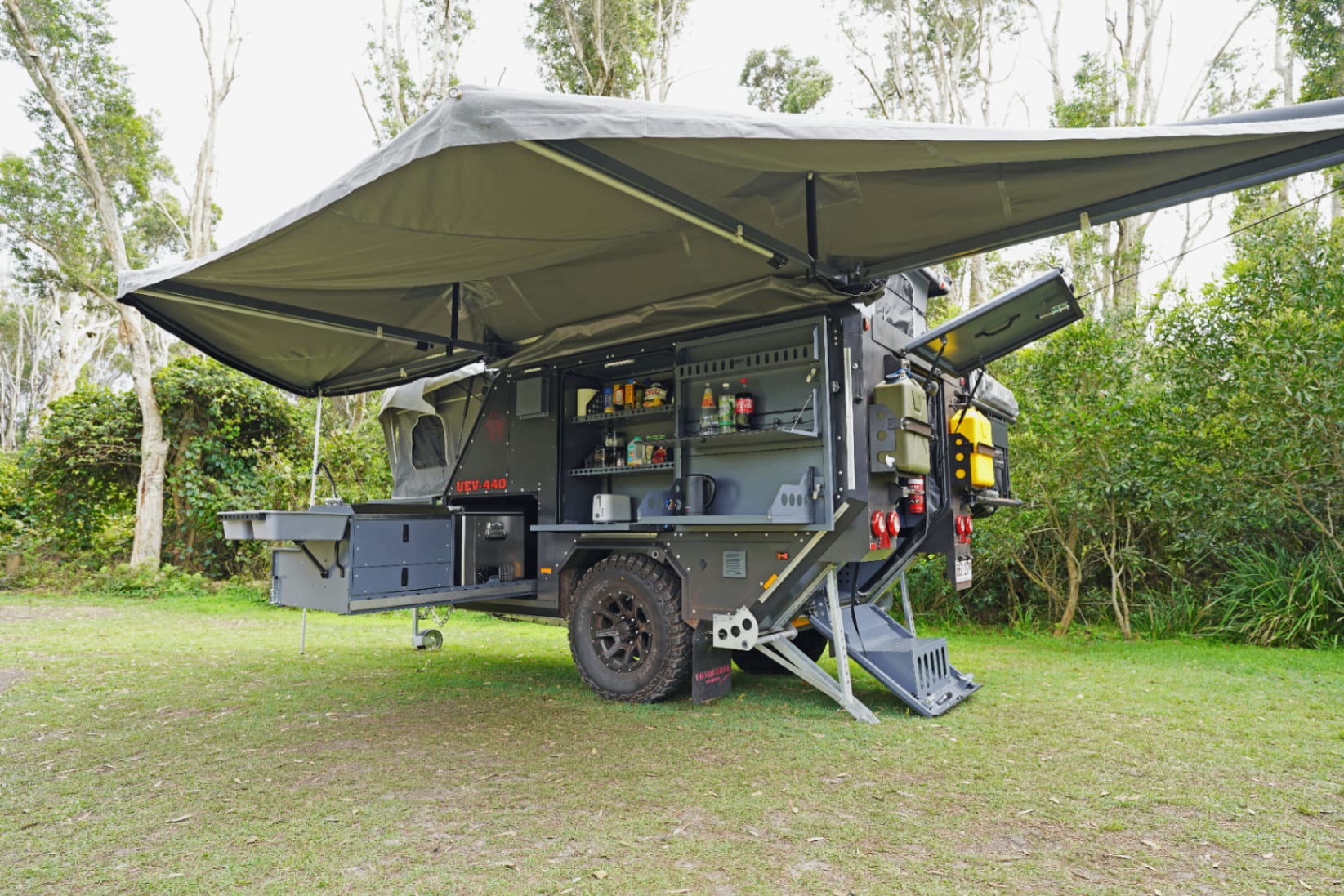

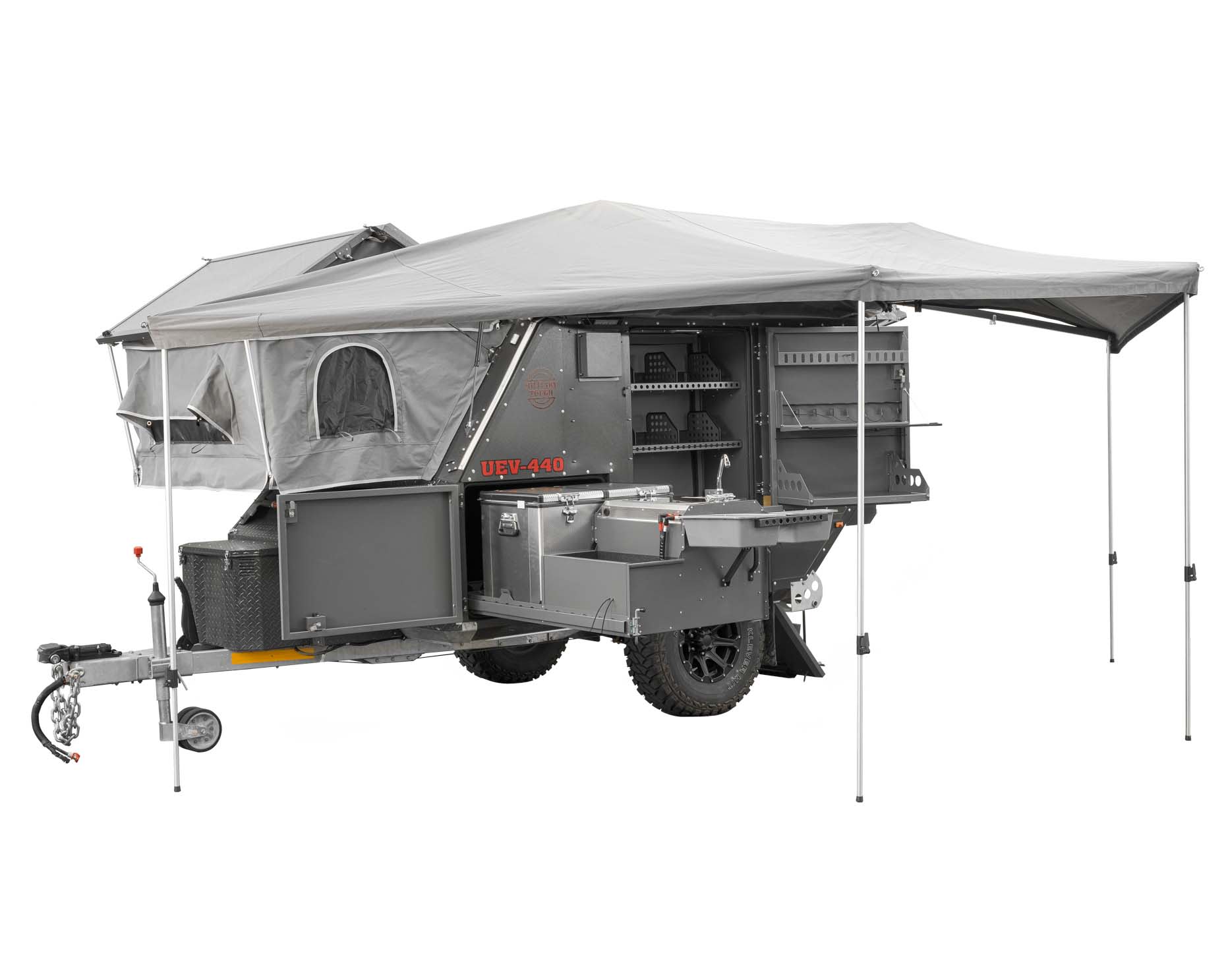

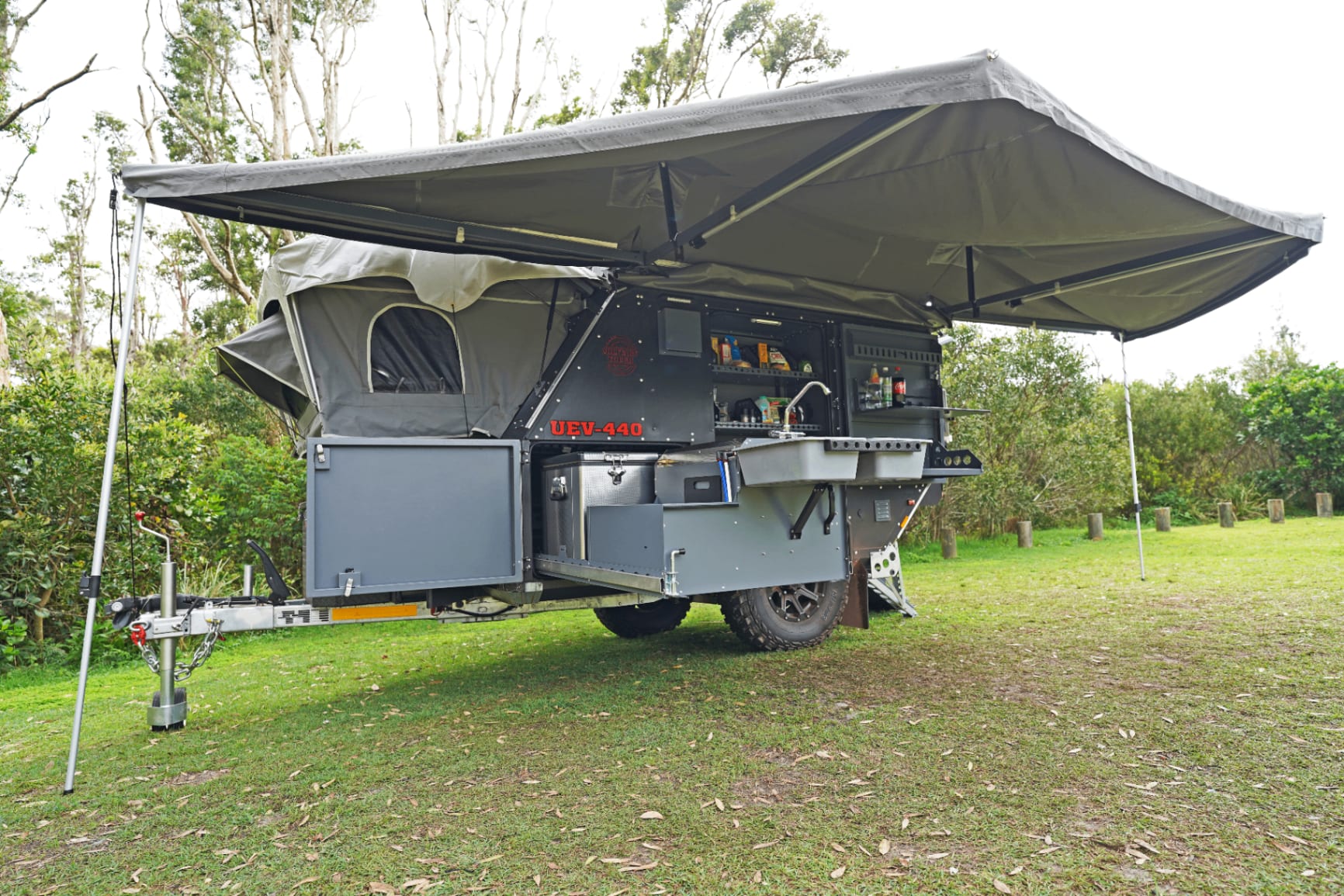

- Batwing Awning Kitchen Side
- Batwing Awning Shower side
- Complete Awning walls for both sides including Smart Numbering
- EggShell Memory Foam Mattresses
- 2 x Dooners and Pillow Set
- Tropical Fly for front bed
- Insulated walls
KITCHEN / COOKING / RELAXING

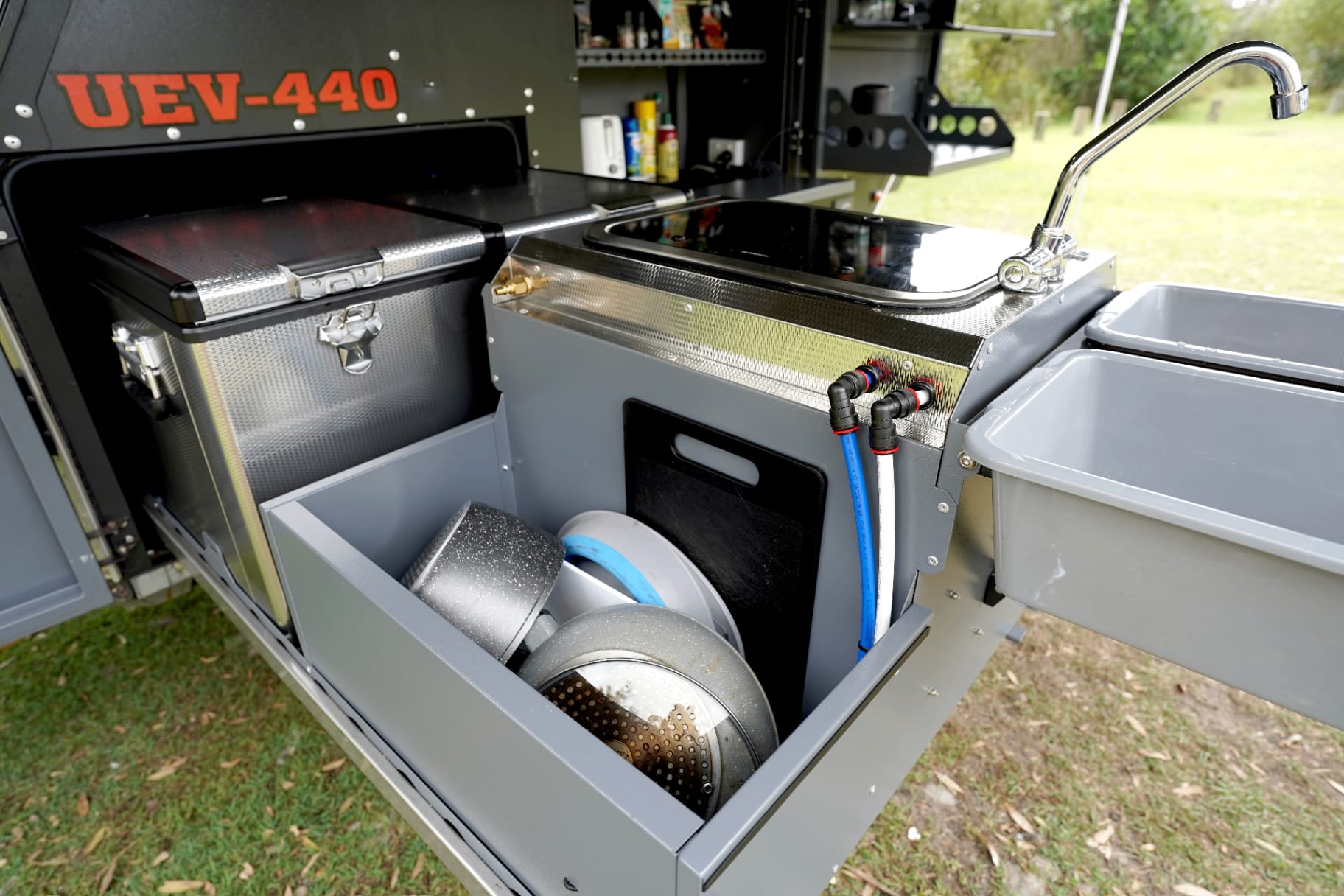

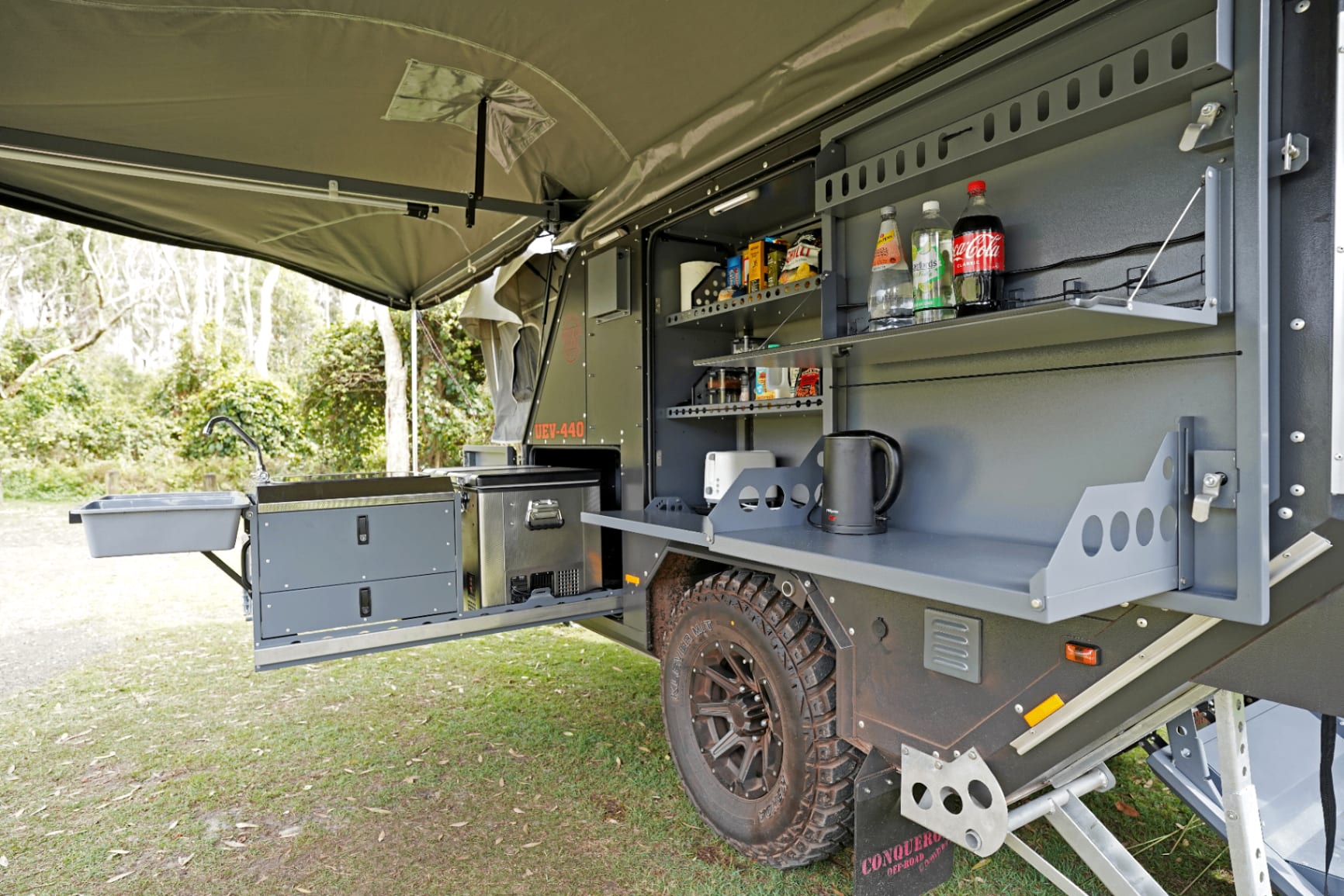

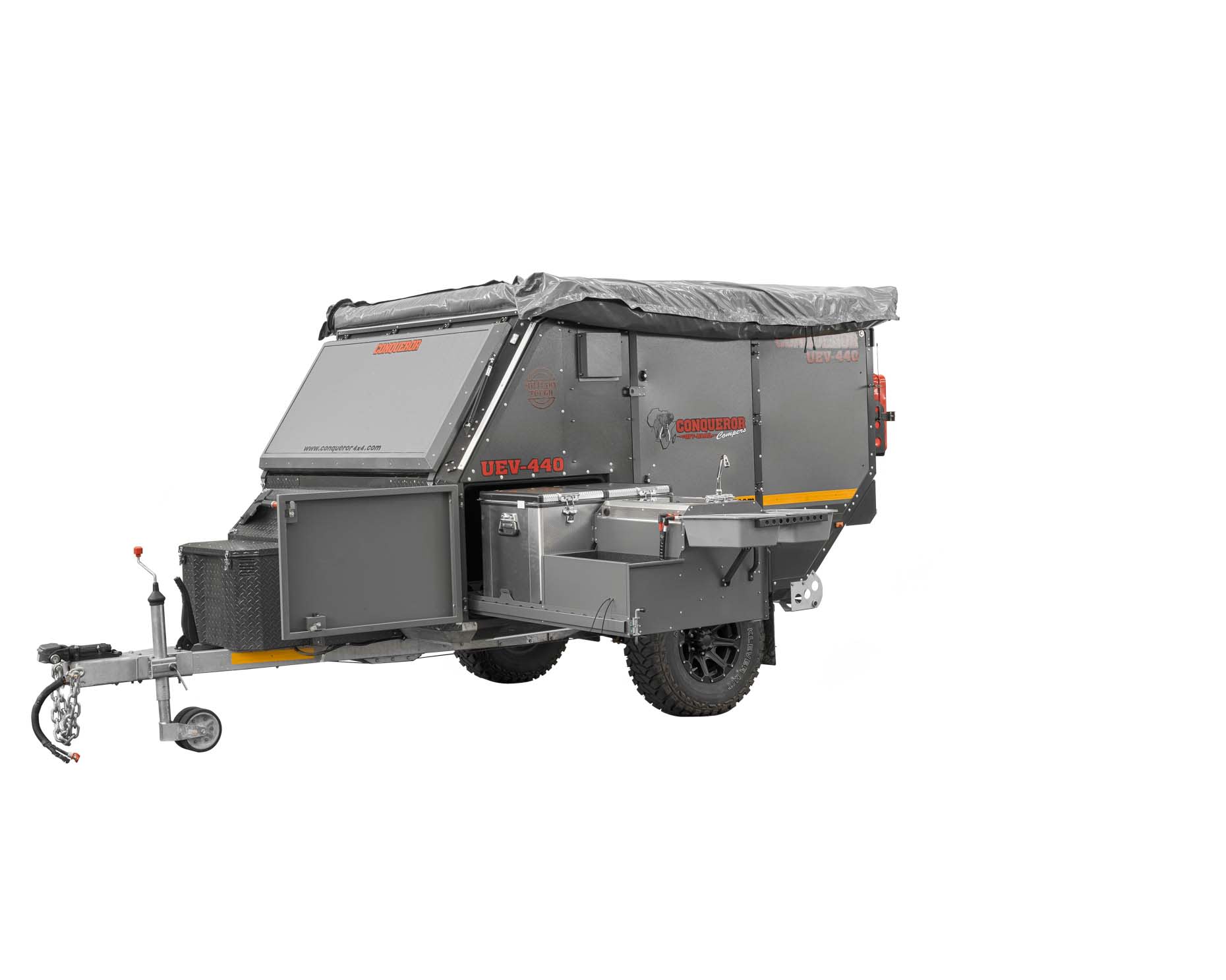

- Slide out Kitchen
- 2 burner Dometic Gas cooktop with direct gas connection to trailer

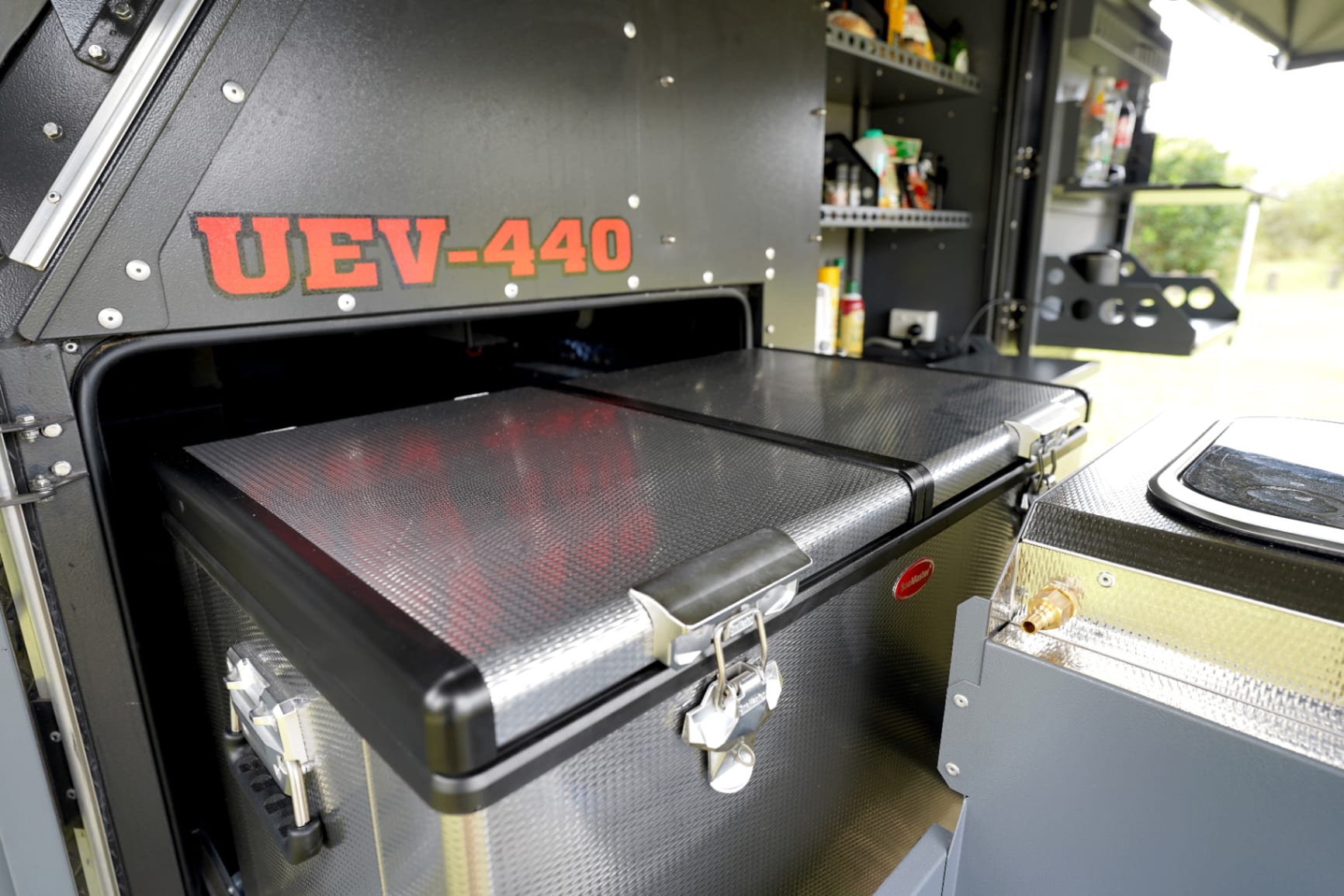

- 82L Fridge / Freezer with remote

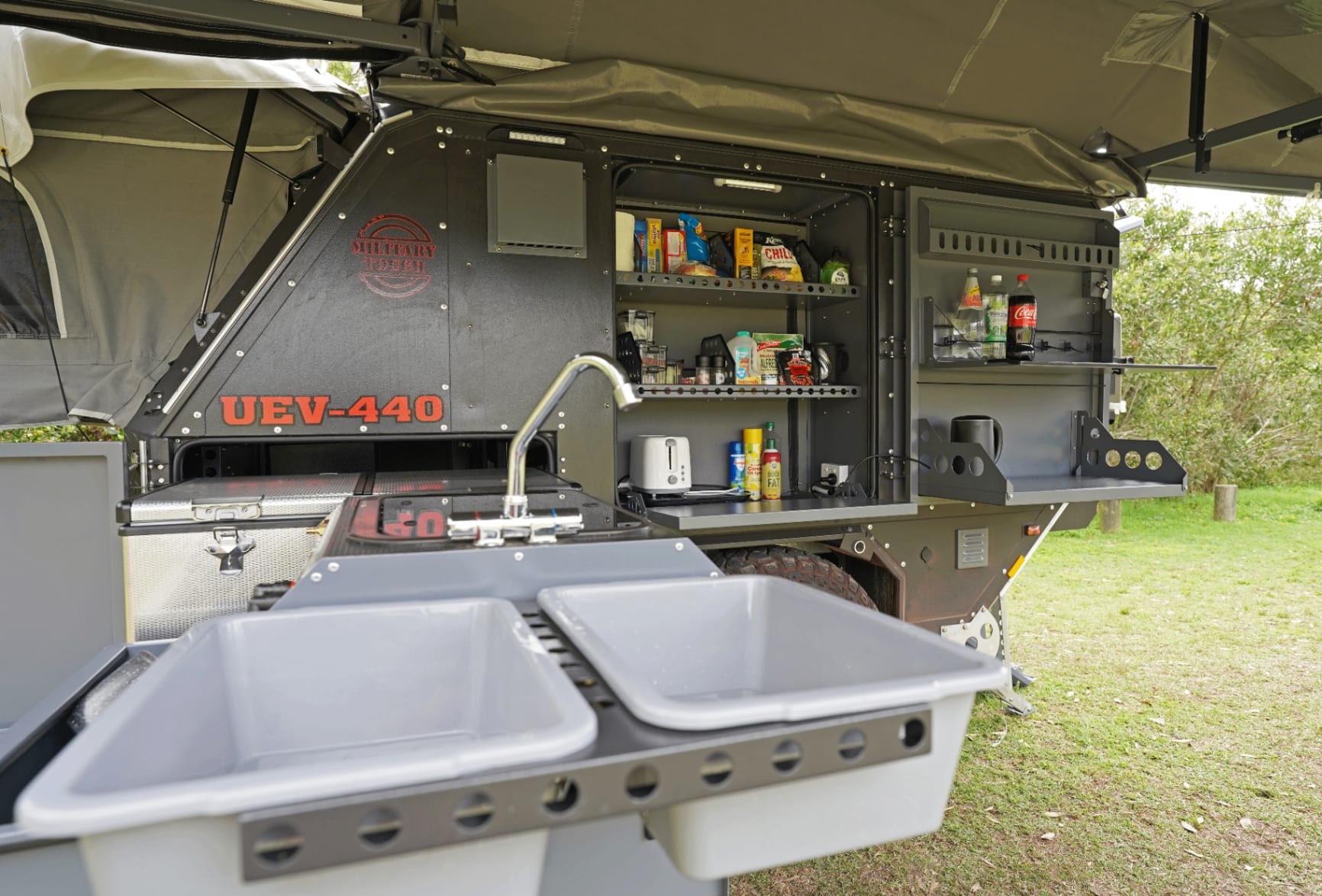

- Twin wash basins with Hot Water mixer tap

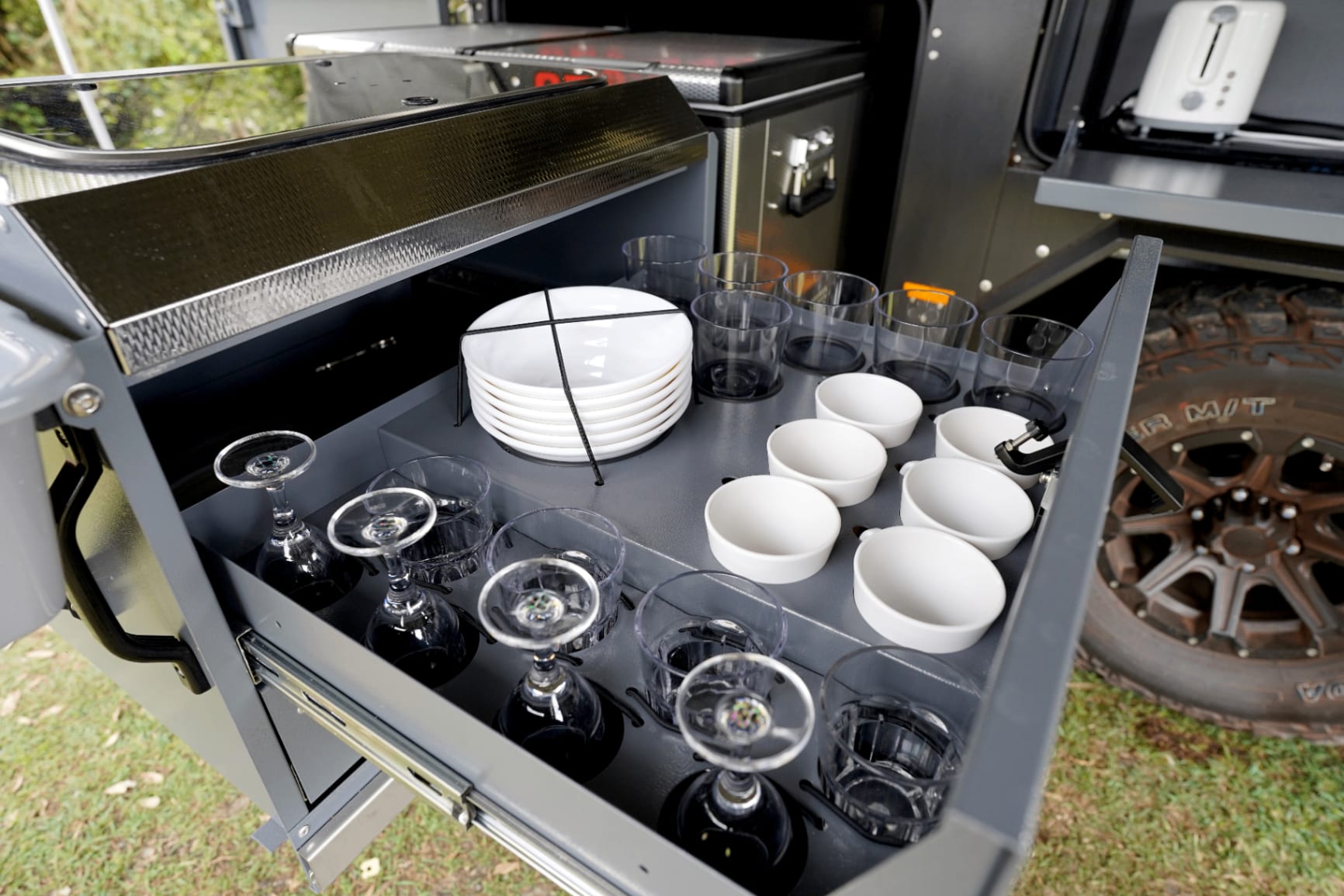

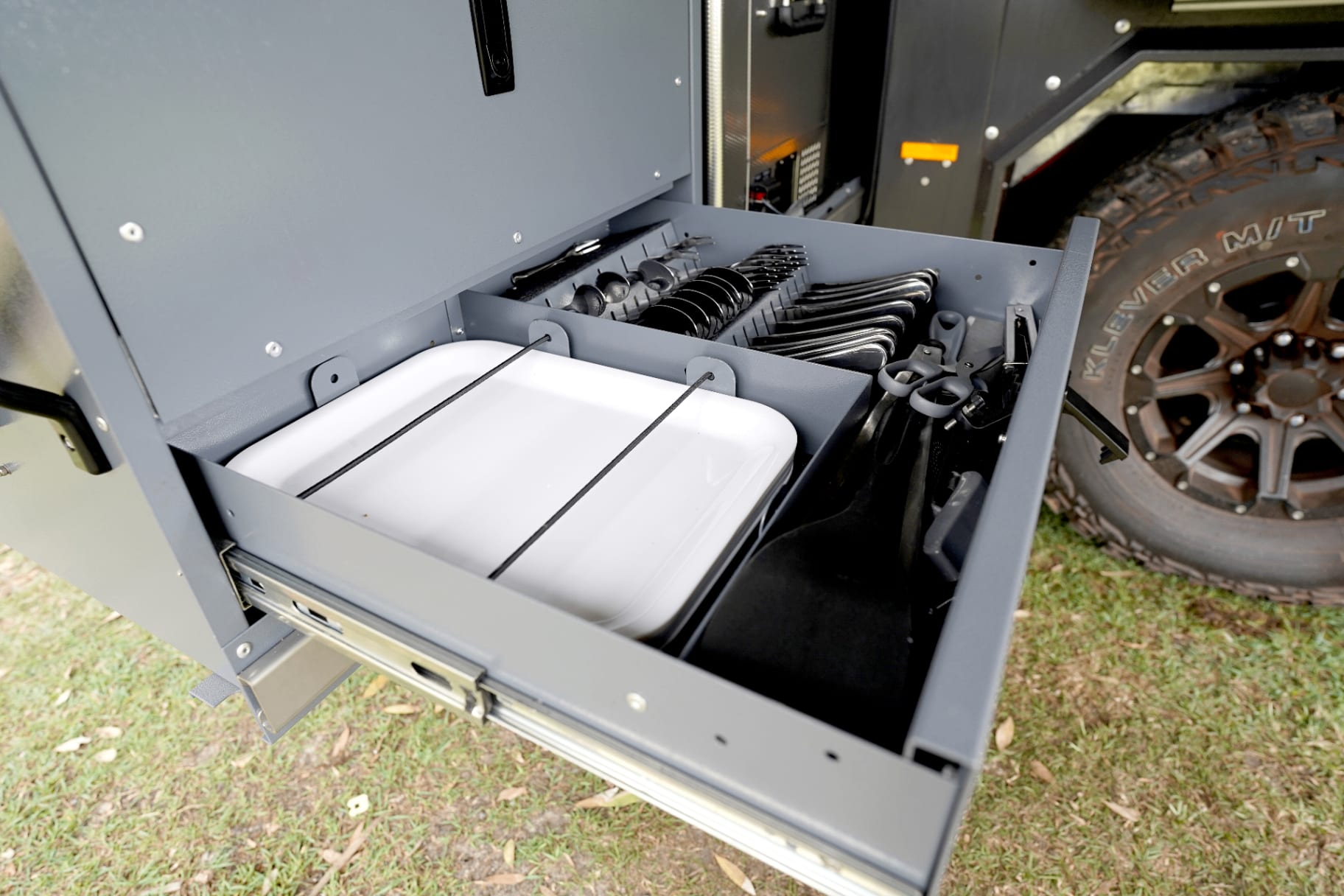

- Secure purpose built storage for your cutlery and crockery (also included)
- Outside Mini Bar & Preparation Shelf
POWER / LIGHTING
- 2 x Solar Inputs 240-12V
- 2 x 100AH AGM Batteries
- 50 AMP Anderson Plug (Regulated)
- 50 AMP DC-DC Anderson Plug (Unregulated)
- 2 x 200 Watt Solar Blankets
- 4 x Dual USB Charging Points (8 in total)
- 15 AMP 240V Charging Lead
- 2 X 240 GPO Powerpoints
- External LED Light Bar Above kitchen
- In Awning Soft Lighting (both sides) with external switches
- 4 x Internal LED Lights
- 2 x Internal Fans
- Trailer Breakaway System
ENTERTAINMENT
- Hi Definition 19″ DVD/USB media player screen
- 4 x Surround sound speakers
- AM/FM CD Stereo with Bluetooth and USB
BATHROOM
- Rear Shower tent with in built shower housing
- Fold out shelf in shower
OTHER
- External Fan to pressurize cabin
- Fire Extinguisher
- Marine Grade floor carpet
- Ropes and Pegs
OPTIONS
- Extended Drawbar (currently Standard, will be optional in future)
- RED ARC manager 30 (currently Standard, will be optional in future)
Specifications
| Name | Weight |
|---|---|
| Exterior Length | 4995mm (incl. Extended Drawbar and Hitch) |
| Exterior Width | 2045mm |
| Exterior Height | 2145mm |
| Suspension | Airbag Suspension 2.5T Independent |
| Tare | 1680kg |
| GVM | 2250kg |
| Water Capacity | 150 Litres |
| AC Charger Output | 24A/14.7V (max) |
| Occupant Capacity | 4 |
| Side Bed Dimensions | 1740mm (L) x 1430mm(W) |
| Front Bed Dimensions | 1950mm (L) x 1740mm (W) |
